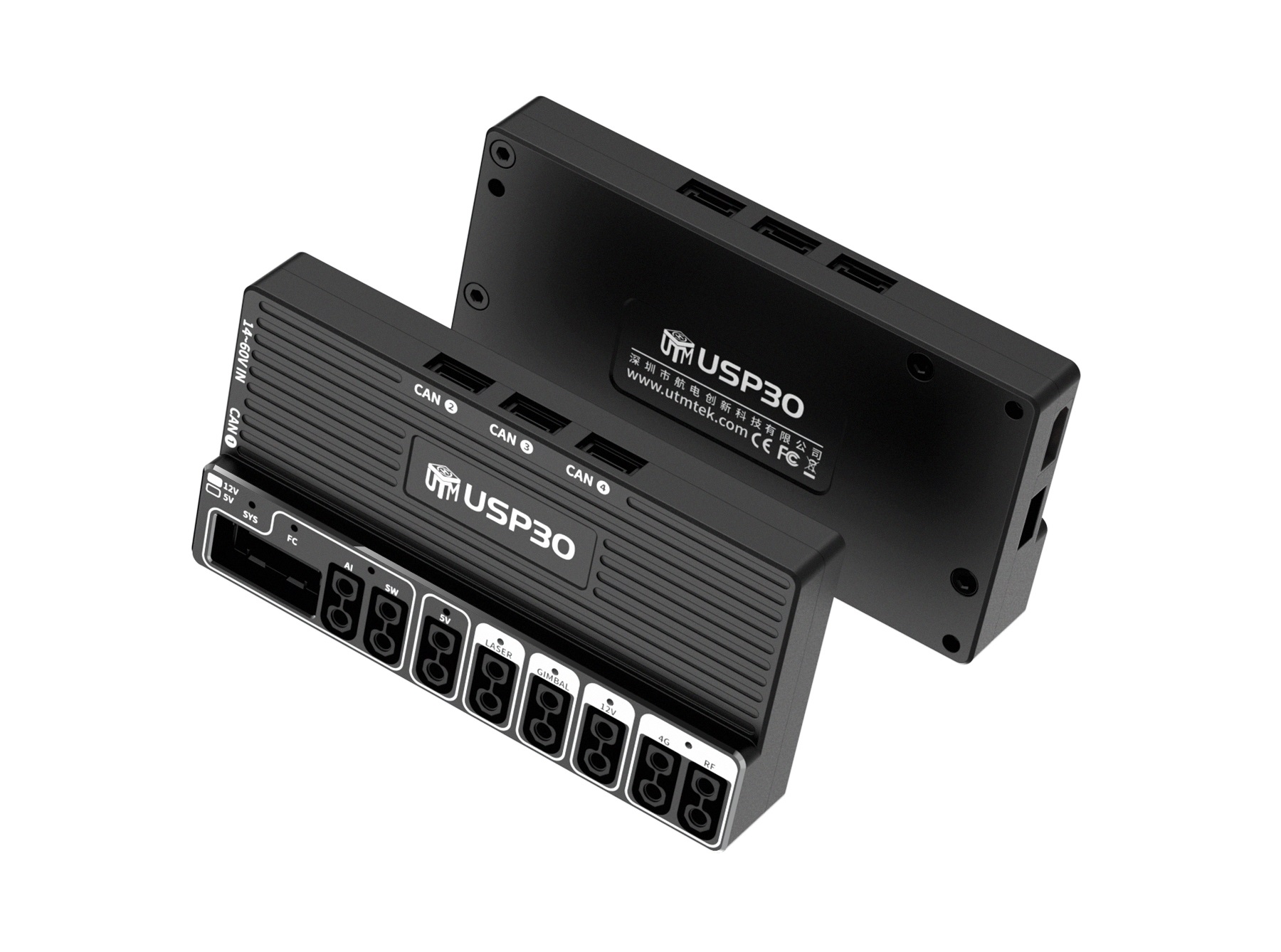

1.3.6 USP30 Integrated Power Module
Product Description
The UAV Integrated Power Module is an integrated power management unit specifically designed for multi-rotor UAV systems. It integrates power distribution, stable voltage output, current/voltage monitoring, power protection, and intelligent communication, providing stable, reliable, and efficient multi-channel power supply solutions for flight controllers, video links, gimbals, navigation, and onboard peripherals.
Specifications
| Parameter | Specification |
|---|---|
| Power Input | 14~60V |
| Power Output | 5V/5A, 12V/5A |
| Sensors | Voltage sensor, Current sensor |
| Weight | 66g |
| Dimensions | 82.7mm × 42.7mm × 15.8mm |
| Operating Temperature | -20~80°C |
Interface Definition
| Interface Name | Function Description | Interface Type |
|---|---|---|
| 14~60V IN | Power input interface | XT30 male |
| FC | Flight controller power interface | XT30 female |
| AI | AI module power interface | XT30 female |
| SW | Switch module power interface | XT30 female |
| 5V | 5V device power interface | XT30 female |
| LASER | LiDAR power interface | XT30 female |
| GIMBAL | Gimbal power interface | XT30 female |
| 12V | 12V device power interface | XT30 female |
| 4G | 4G link module power interface | XT30 female |
| RF | RF module power interface | XT30 female |
| CAN1-CAN4 | CAN device expansion interface | GH1.25-4P |
| Status LEDs | 8 | - |
Product Drawings

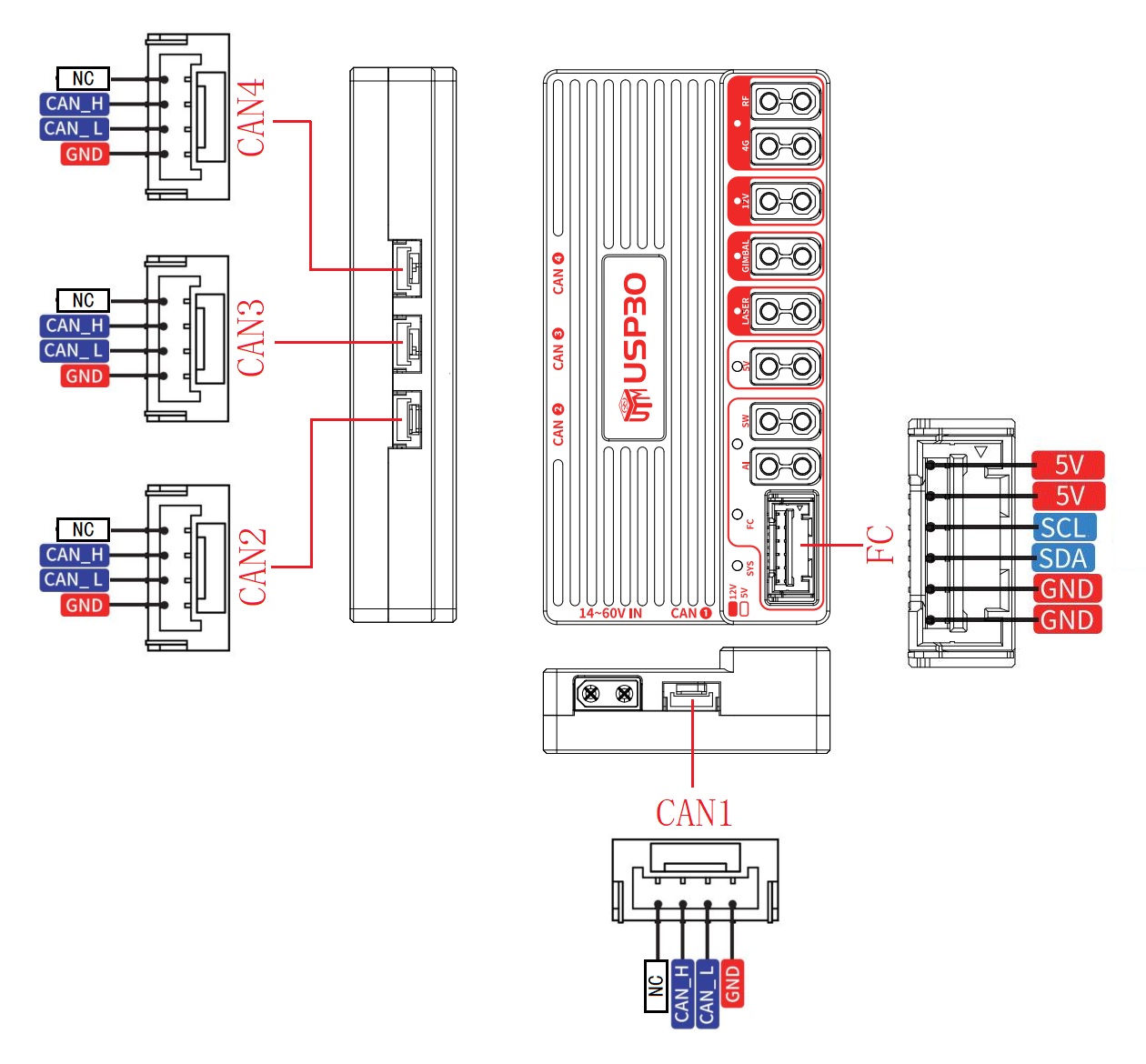

USP30 Interface Diagram

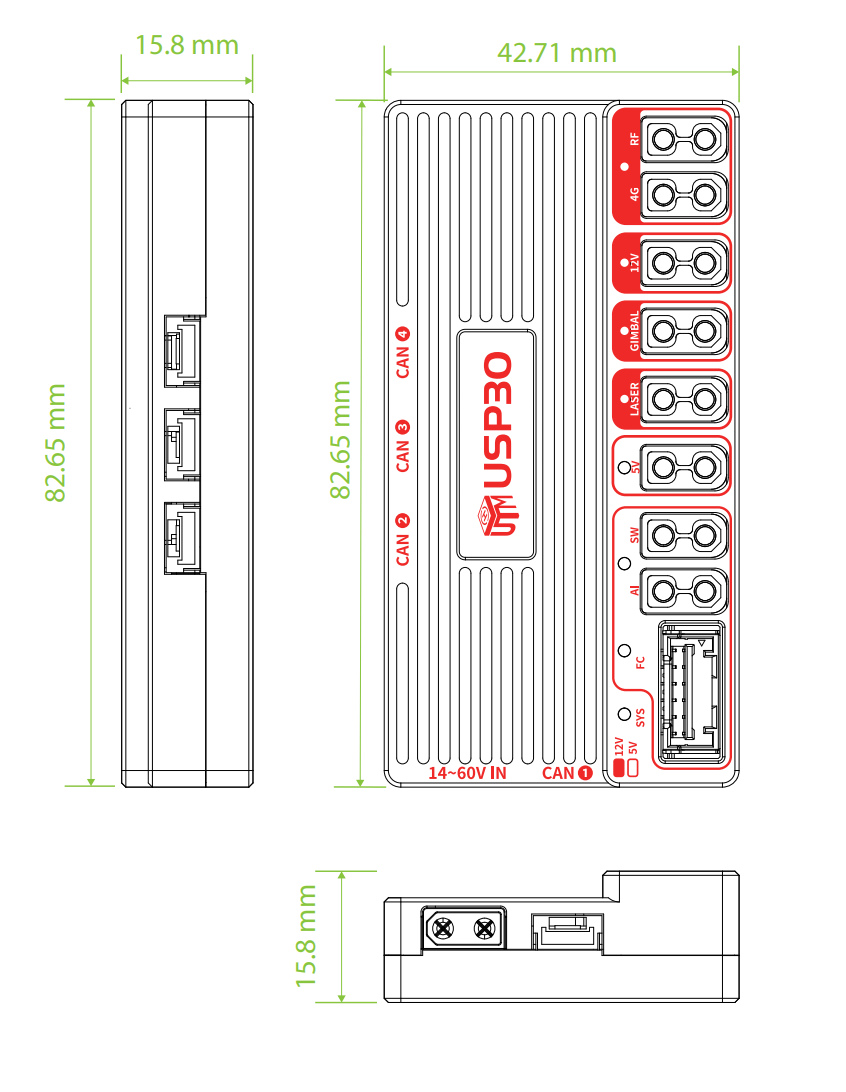

USP30 Dimensions Diagram

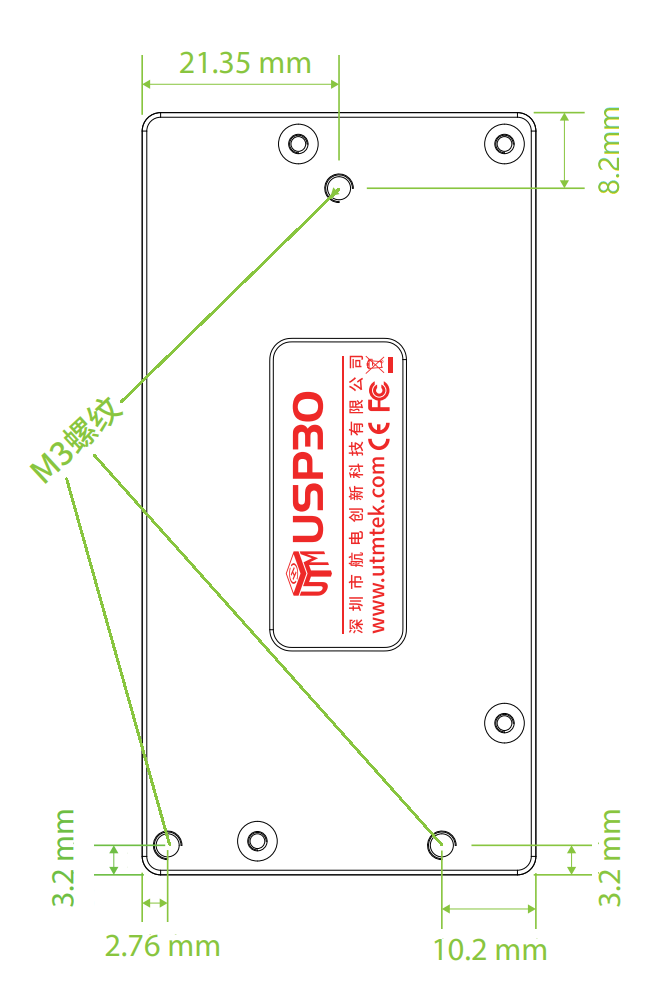

USP30 Installation Diagram
