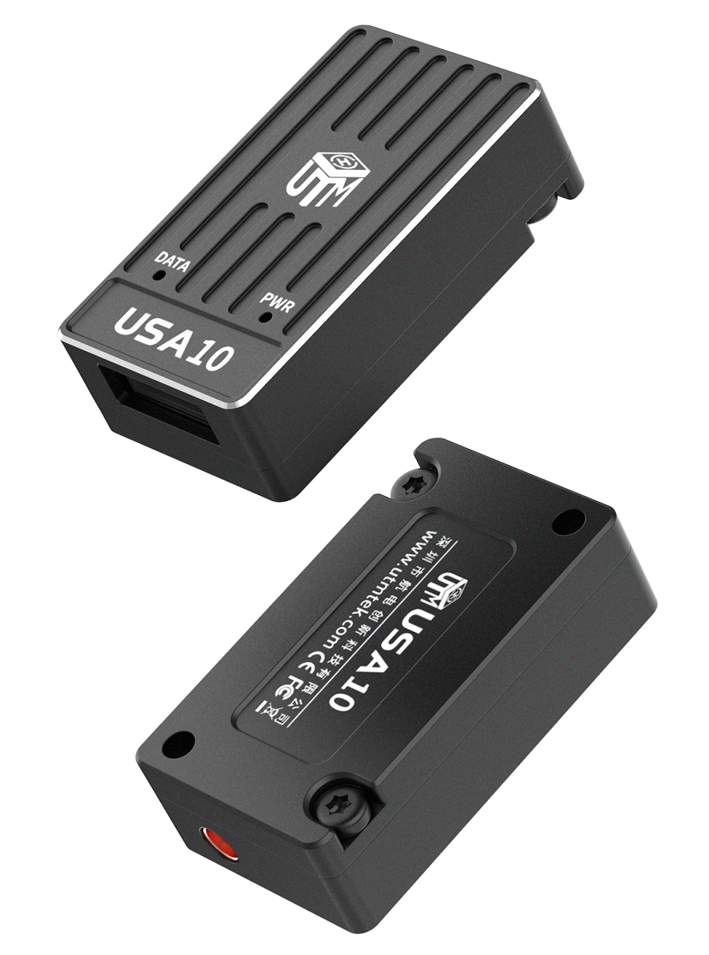

1.3.5 USA10 ADS-B Receiver Module
Product Description
The ADS-B Receiver Module is an important surveillance device for UAV flight safety. It can real-time receive broadcast signals from aircraft equipped with ADS-B systems in the surrounding airspace, such as commercial airliners and general aviation aircraft, precisely obtaining key flight information such as position, altitude, speed, heading, and call sign, and synchronously transmitting the data to the flight controller or ground station. By identifying nearby aerial targets in advance, predicting collision risks, and issuing warnings, it effectively improves airspace awareness and obstacle avoidance safety for UAVs flying in complex airspace.
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V |
| Operating Current | 55mA |
| Receiver Sensitivity | -90dBm |
| Antenna Input Impedance | 50Ω |
| Target Processing Capability | 100 tracks |
| Operating Frequency | 1090MHz |
| Detection Range | 250km |
| Communication Method | UART |
| Data Interface | GH1.25-6P |
| Antenna Interface | MMCX |
| Dimensions | 34mm × 19.5mm × 10mm |
| Weight | 9.2g |
| Operating Temperature | -20~80°C |
Product Drawings

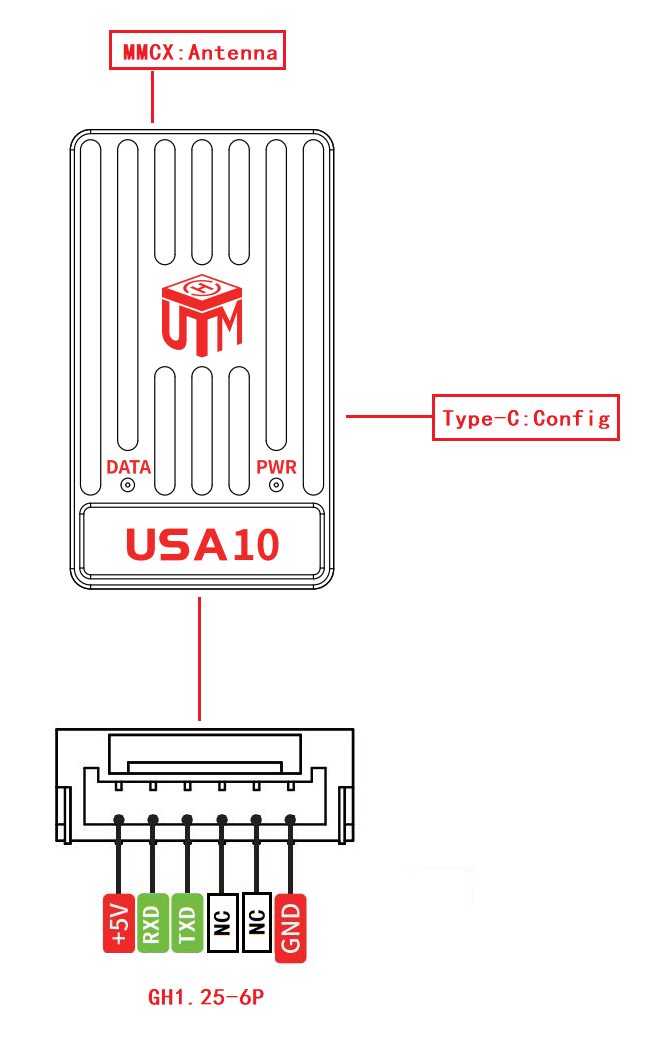

USA10 Interface Diagram

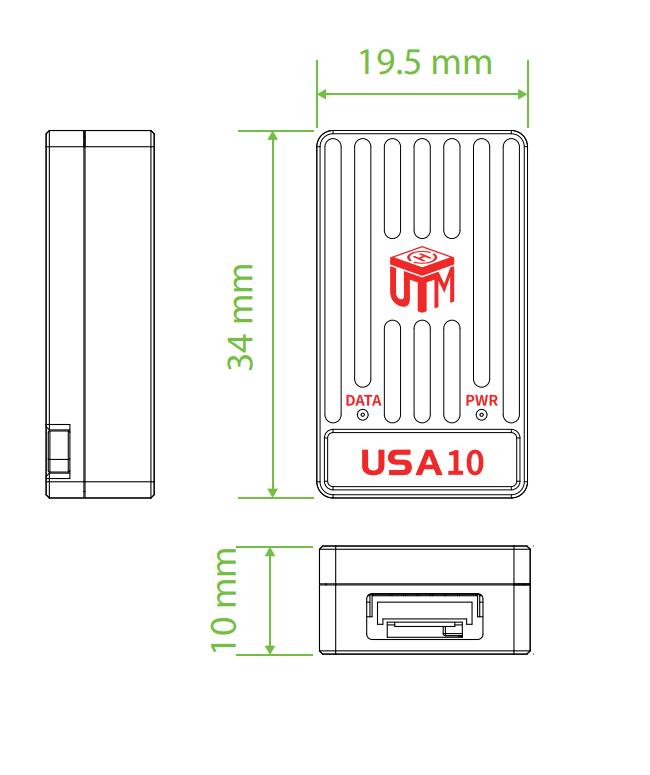

USA10 Dimensions Diagram

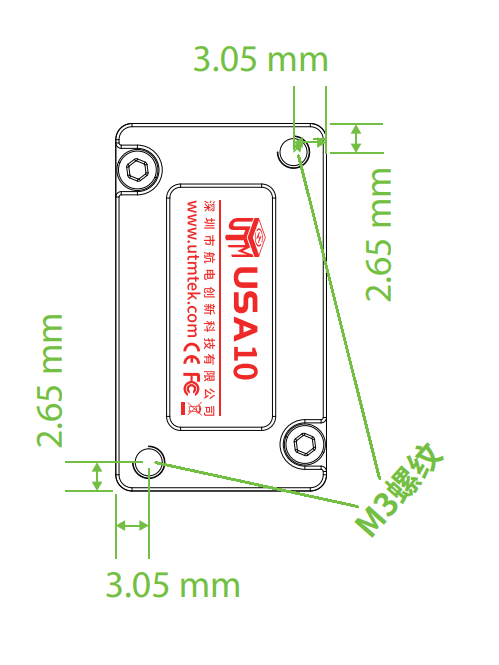

USA10 Installation Diagram
