1.3.3 USF10 Optical Flow Positioning Module

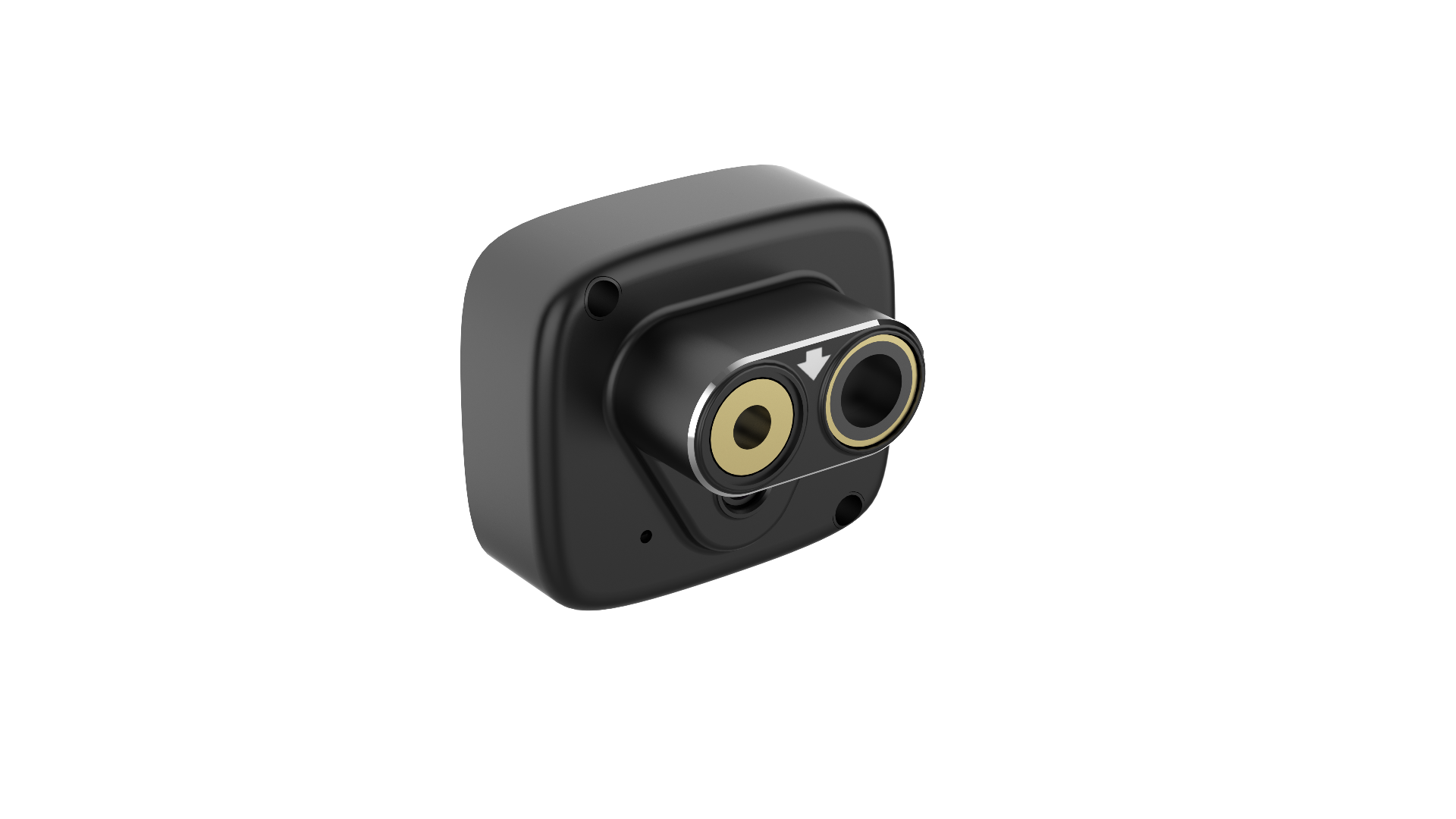

Product Description
The USF10 Optical Flow Positioning Module calculates the horizontal speed and position information of the aircraft by real-time detecting pixel displacement of ground textures. It can achieve stable altitude hold and position hold in enclosed environments without GPS signals such as indoors and corridors, effectively compensating for the scenario limitations of GPS positioning.
Specifications
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V |
| Output Interface | UART |
| Refresh Rate | 100Hz |
| Ranging Range | 0.01~8m |
| Ranging Blind Zone | 1cm |
| Ranging Accuracy | 2% |
| Wavelength | 830~870nm |
| Ambient Light Immunity | 70K Lux |
| Ranging FOV | 6° |
| Optical Flow FOV | 42° |
| Optical Flow Ambient Light Requirement | >60Lux |
| Optical Flow Working Distance | >80mm |
| Interface | GH1.25-6P |
| Power Consumption | 500mW |
| Weight | 14.3g |
| Dimensions | 31mm × 26.8mm × 19.8mm |
| Operating Temperature | -20~80°C |
Product Drawings

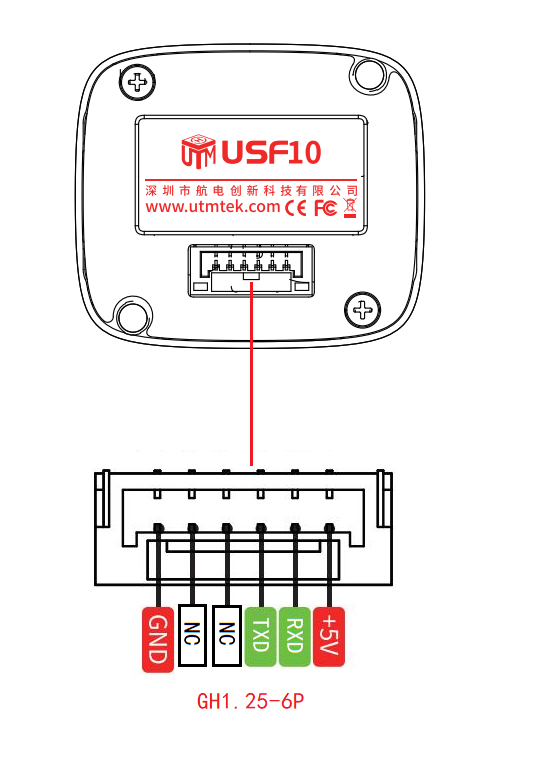

USF10 Interface Diagram

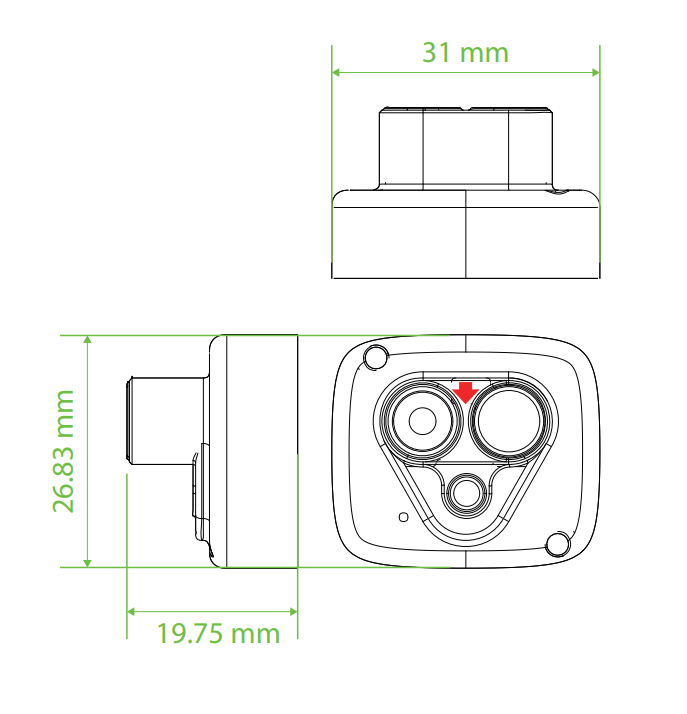

USF10 Dimensions Diagram

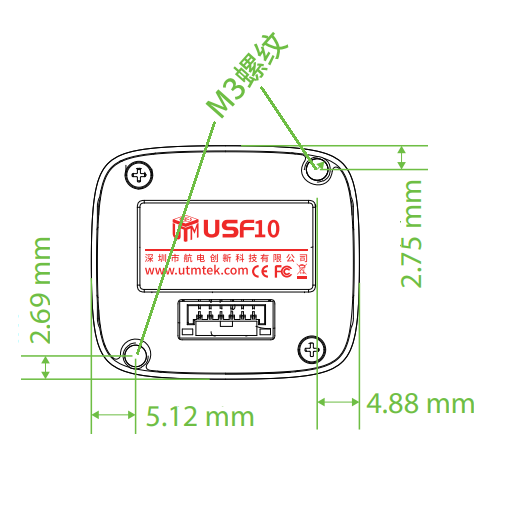

USF10 Installation Diagram
