1.3.10 USW10 Airspeed Module

Product Description​

The USW10 Airspeed Module collects total pressure and static pressure data from the pitot tube, calculates UAV airspeed and dynamic pressure in real-time, and provides precise airflow velocity feedback for the flight controller. It features temperature compensation and anti-interference design, can stably output data in complex weather conditions, effectively assists constant-speed flight, stall protection, and attitude optimization. It is a key sensing component for improving flight stability and safety of fixed-wing and VTOL UAVs.

Specifications​

ParameterSpecification
Supply Voltage5V
Operating Current3mA
Communication MethodI2C
Pressure Resolution14bit
Pressure Accuracy0.25%Span
Temperature Resolution11bit
Temperature Accuracy1.5°C
Response Time0.5ms
Pressure InterfaceStatic (static), Total (pitot)
Communication InterfaceGH1.25-4P
Status LED1
Operating Temperature-20~80°C

Product Drawings​

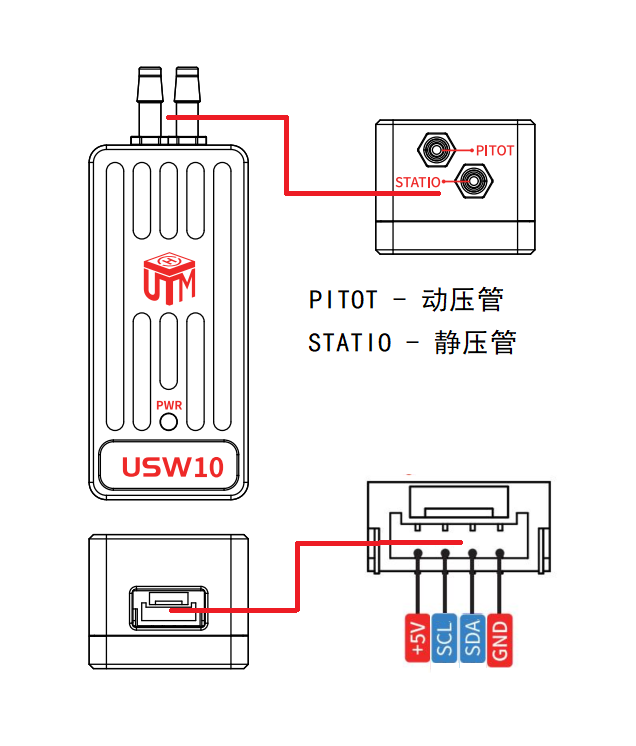

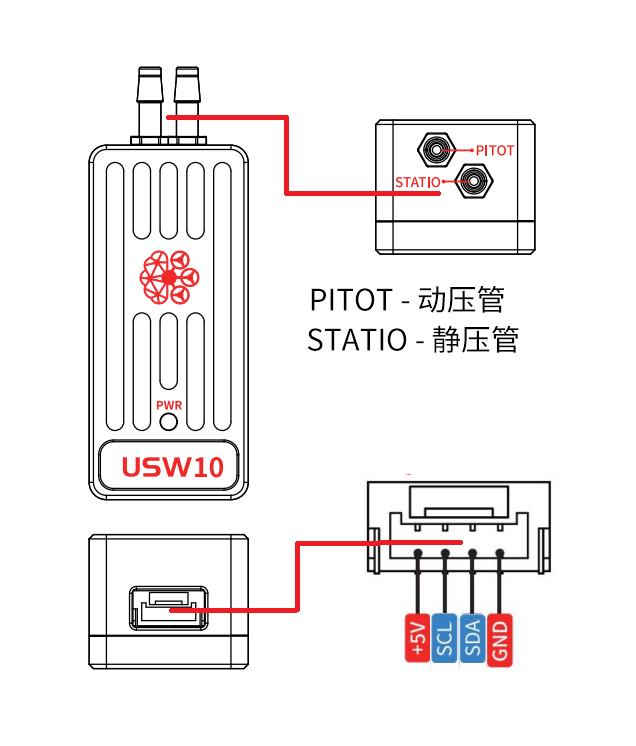

USW10 Interface Diagram​

USW10 Interface

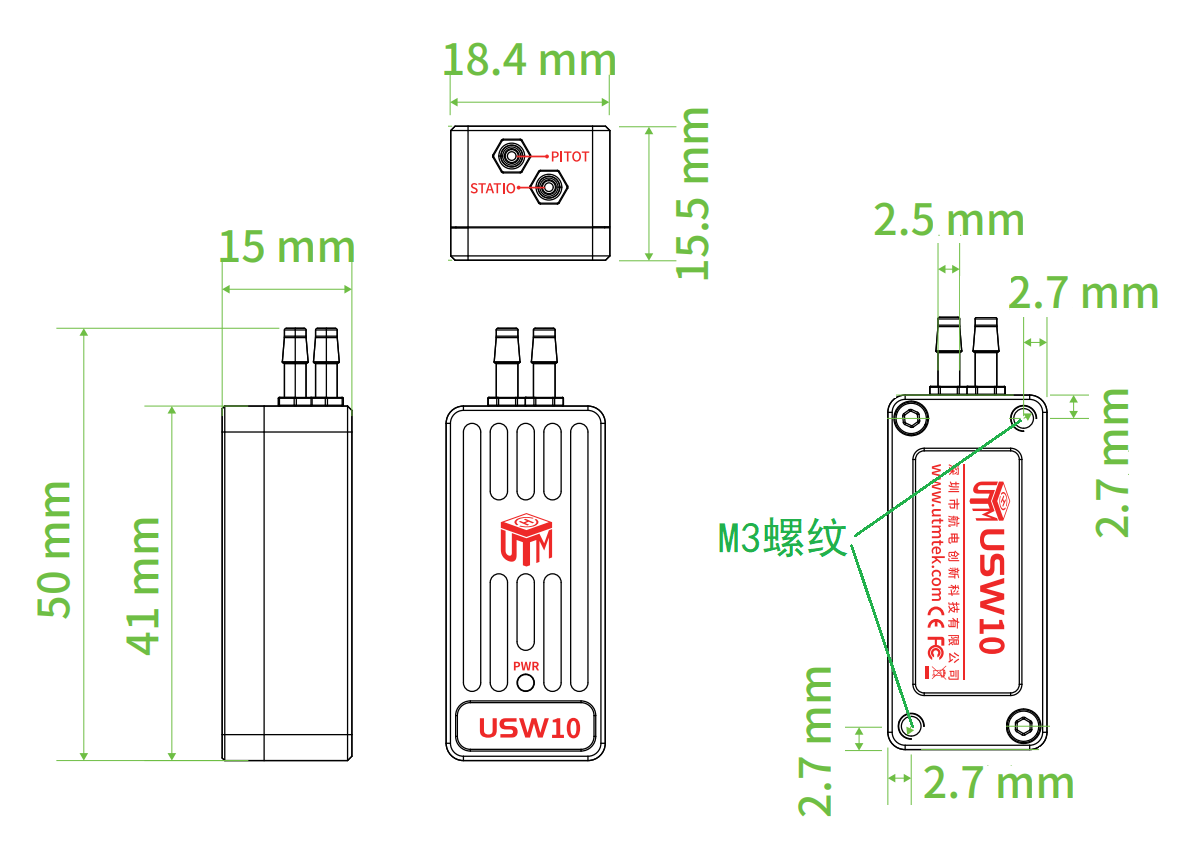

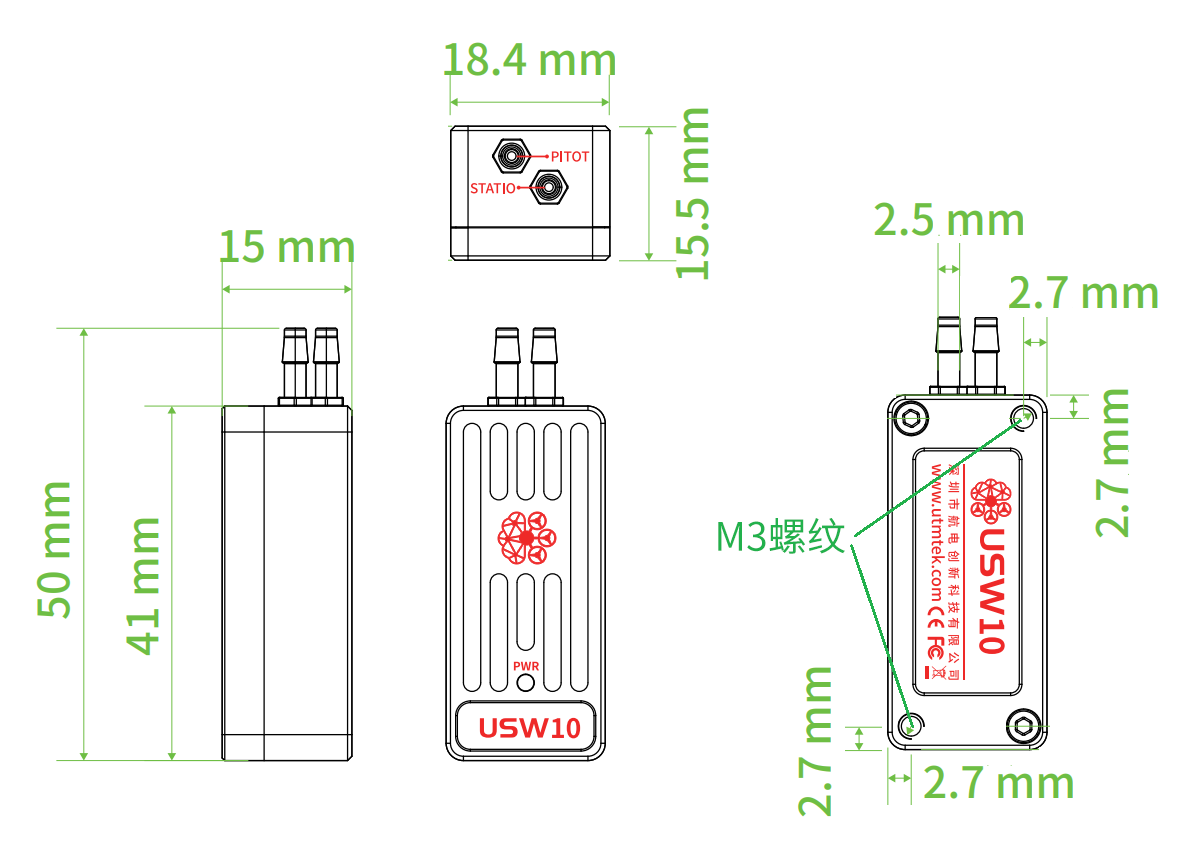

USW10 Dimensions Diagram​

USW10 Dimensions
