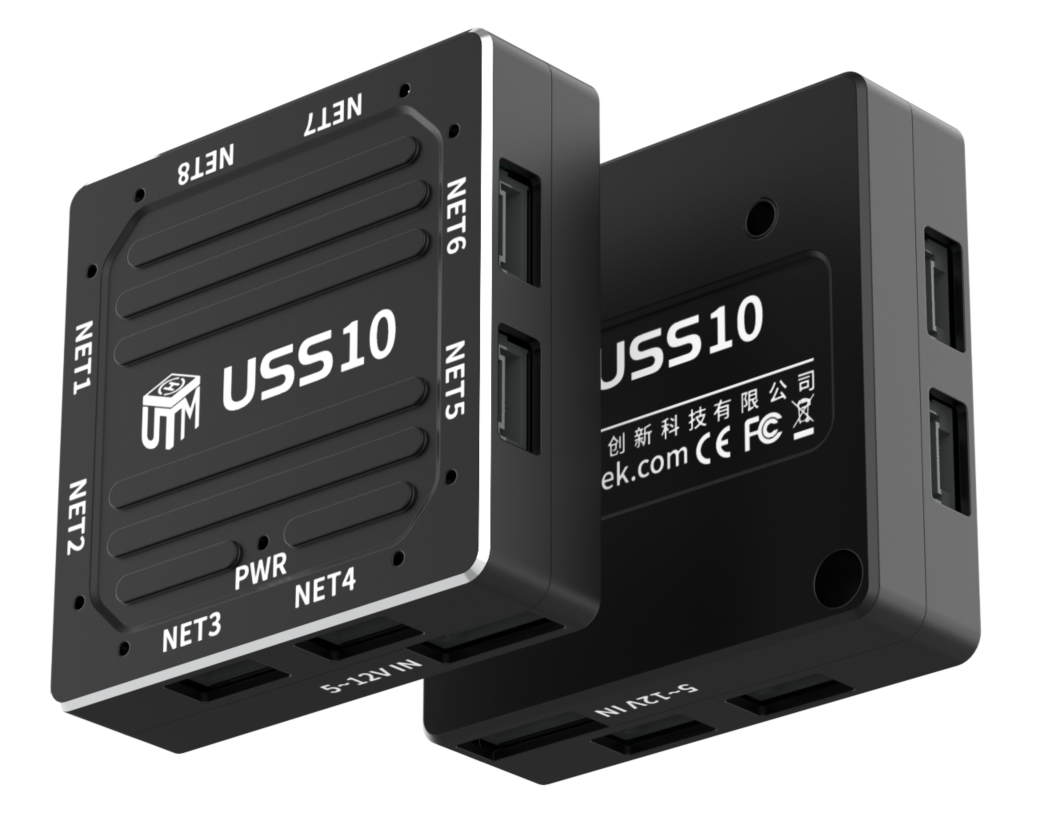

1.3.7 USS10 Onboard 100M Ethernet Switch
Product Description
The USS10 Onboard 100M Ethernet Switch is a lightweight network switching device specifically designed for UAV onboard environments. It can provide stable 100M Ethernet data switching capability, support multi-port expansion and plug-and-play deployment, and can connect flight controllers, video links, computing modules, gimbals, and other airborne Ethernet devices into a unified network.
Specifications
| Parameter | Specification |
|---|---|
| Supply Voltage | 5~12V |
| Maximum Power | <2W |
| Transmission Rate | 10Mbps / 100Mbps |
| Network Standards | IEEE 802.3 / IEEE 802.3u / IEEE 802.3x |
| Network Protocol | CSMA / CD |
| Number of Ports | 8 |
| Packet Forwarding Rate | 10Mbps: 14880pps / 100Mbps: 148800pps |
| MAC Address Table | 8K |
| Power Interface | GH1.25-6P |
| Network Interface | GH1.25-4P × 8 |
| Status LEDs | 9 |
| Dimensions | 40mm × 40mm × 12mm |
| Weight | 20g |
| Operating Temperature | -20~80°C |
Product Drawings

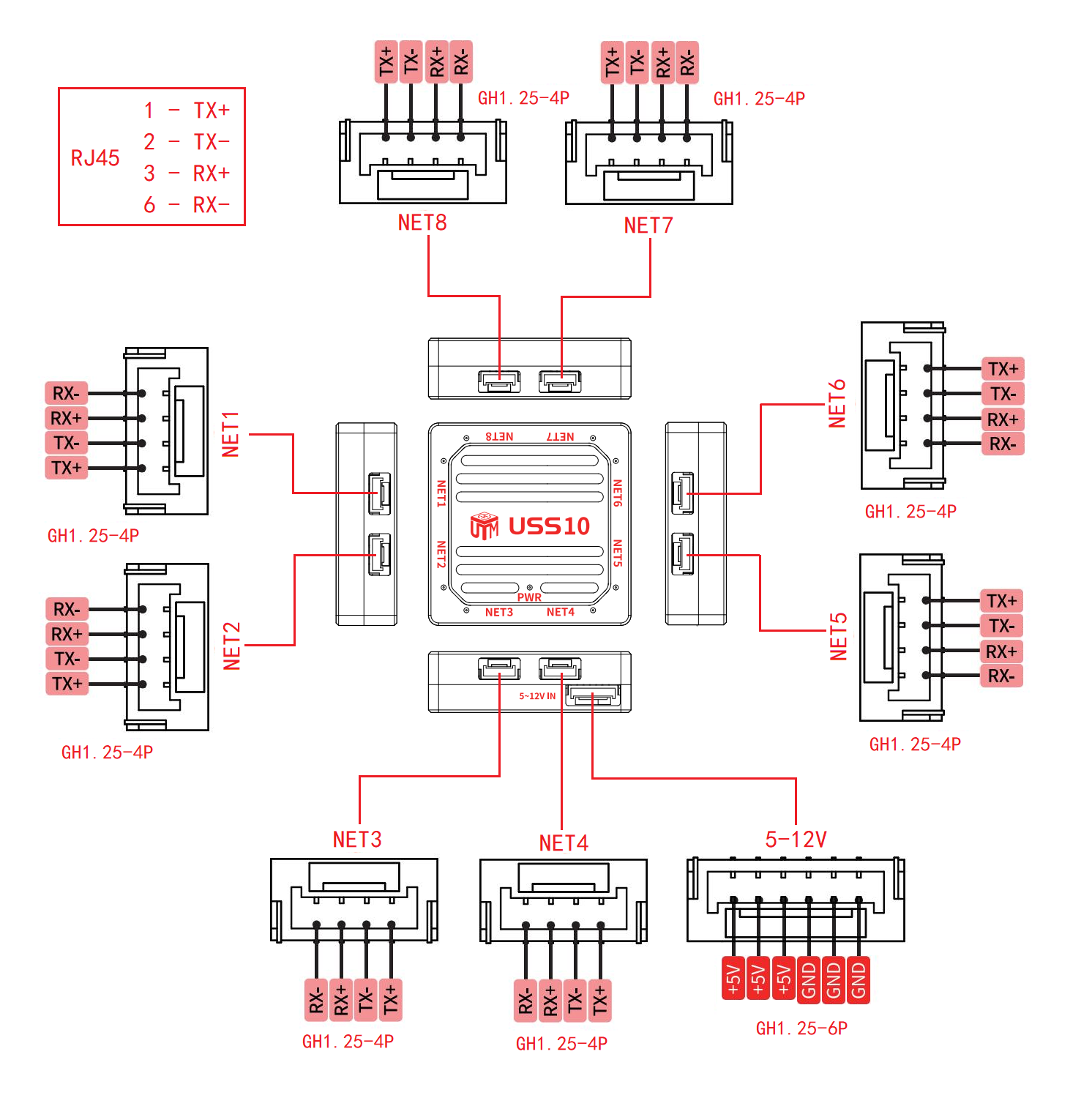

USS10 Interface Diagram

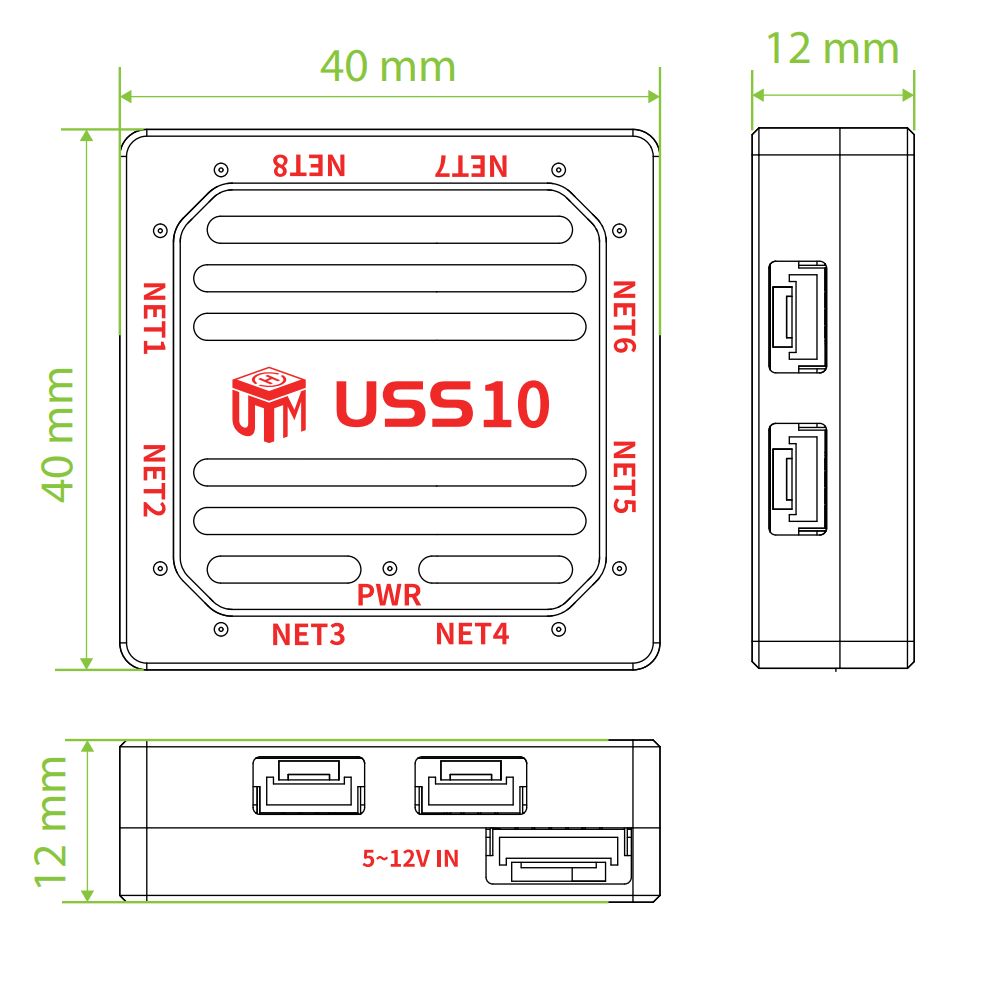

USS10 Dimensions Diagram

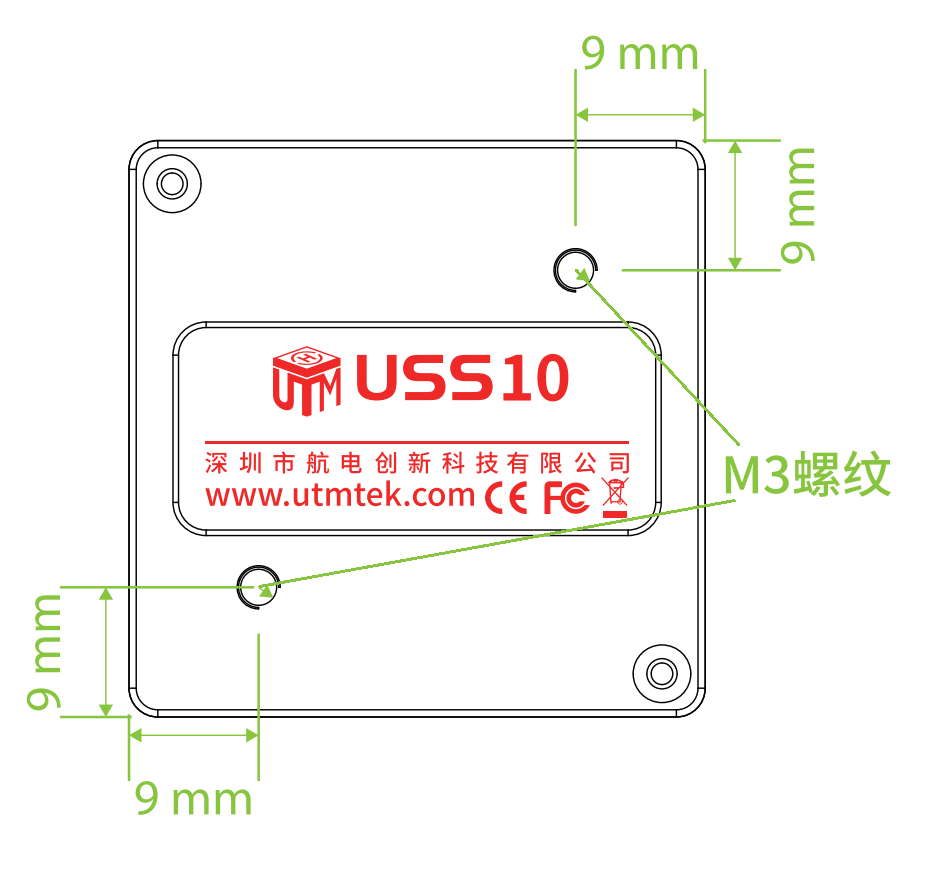

USS10 Installation Diagram
