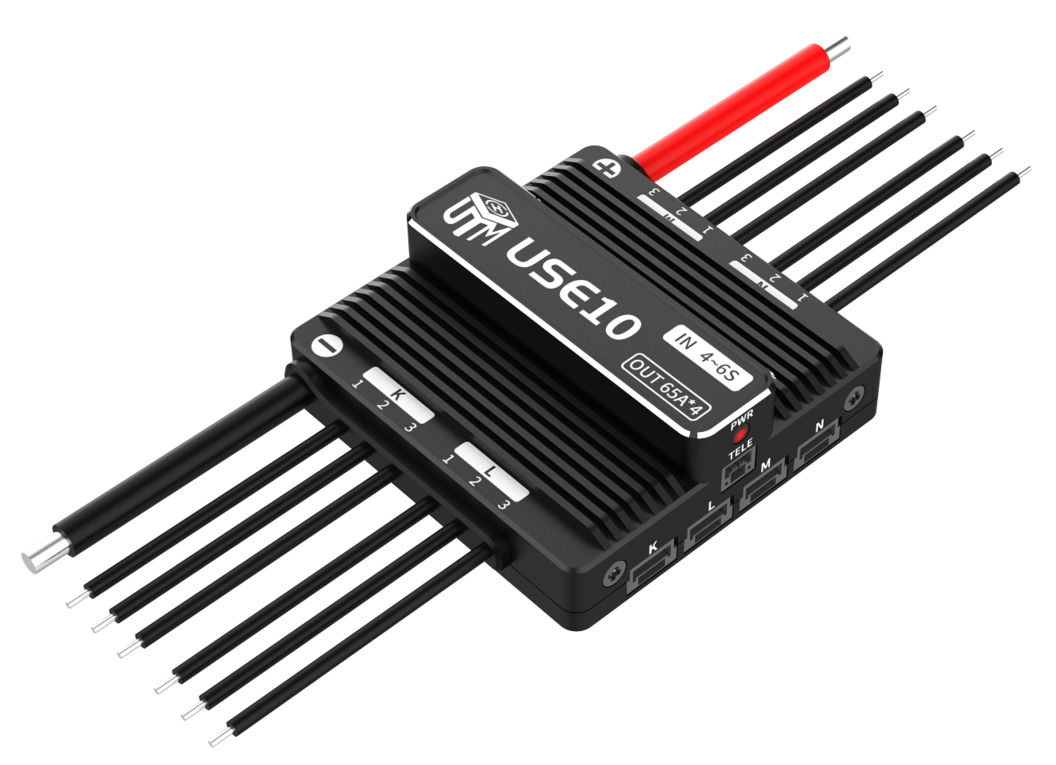

1.3.1 USE10 4-in-1 ESC
Product Description
The USE10 4-in-1 ESC is an integrated four-channel brushless motor speed control module that can receive flight controller signals and precisely control motor speed and power output. It features multiple protection functions including overcurrent, overheating, and stall protection. The integrated design simplifies wiring, reduces interference, and provides stable, efficient, and reliable power control for multi-rotor UAVs.
Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 4~6S LiPo |
| Integrated Channels | 4 |
| Maximum Continuous Output Current | 65A × 4 |
| Maximum Peak Output Current | 80A × 4 |
| BEC | No |
| Input Signal | PWM × 4 |
| Control Interface | GH1.25-4P × 4 |
| Digital Interface | GH1.25-2P |
| Status LED | 1 |
| Dimensions | 57.6mm × 53.6mm × 21.7mm |
| Weight | 87g |
| Operating Temperature | -20 ~ 80°C |
Product Drawings

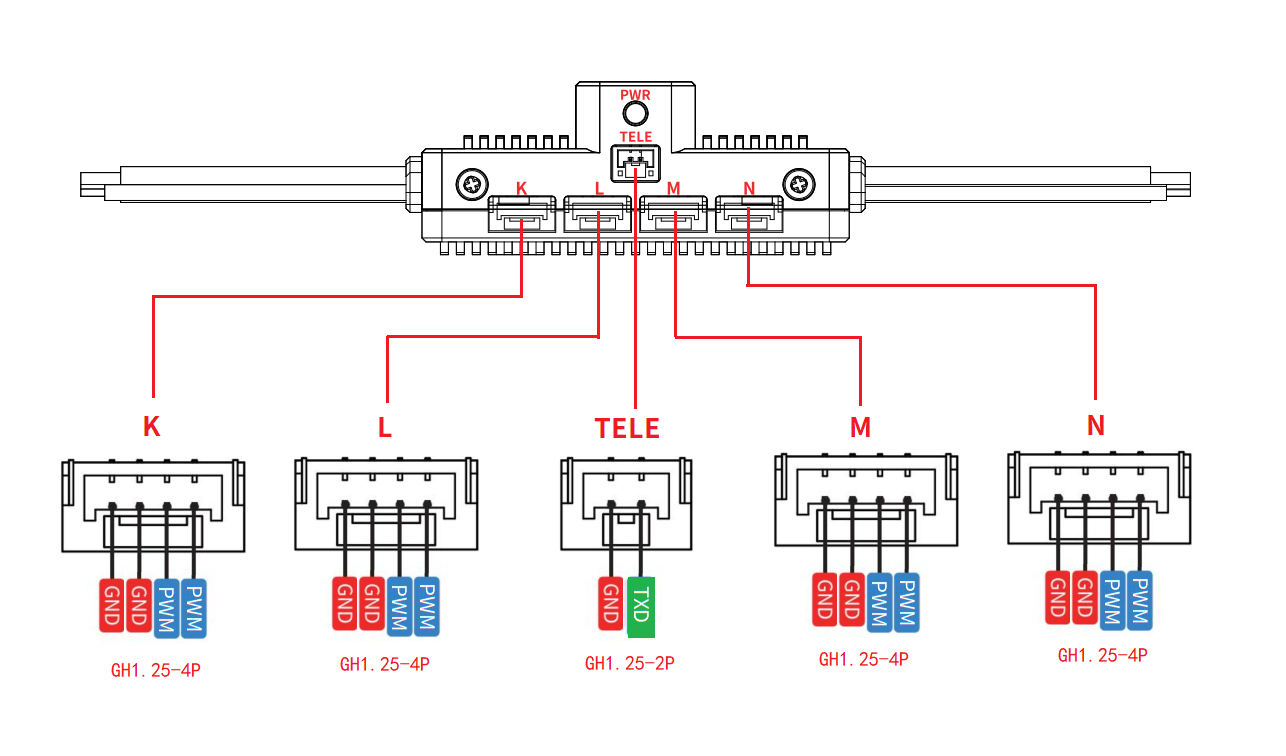

USE10 Interface Diagram

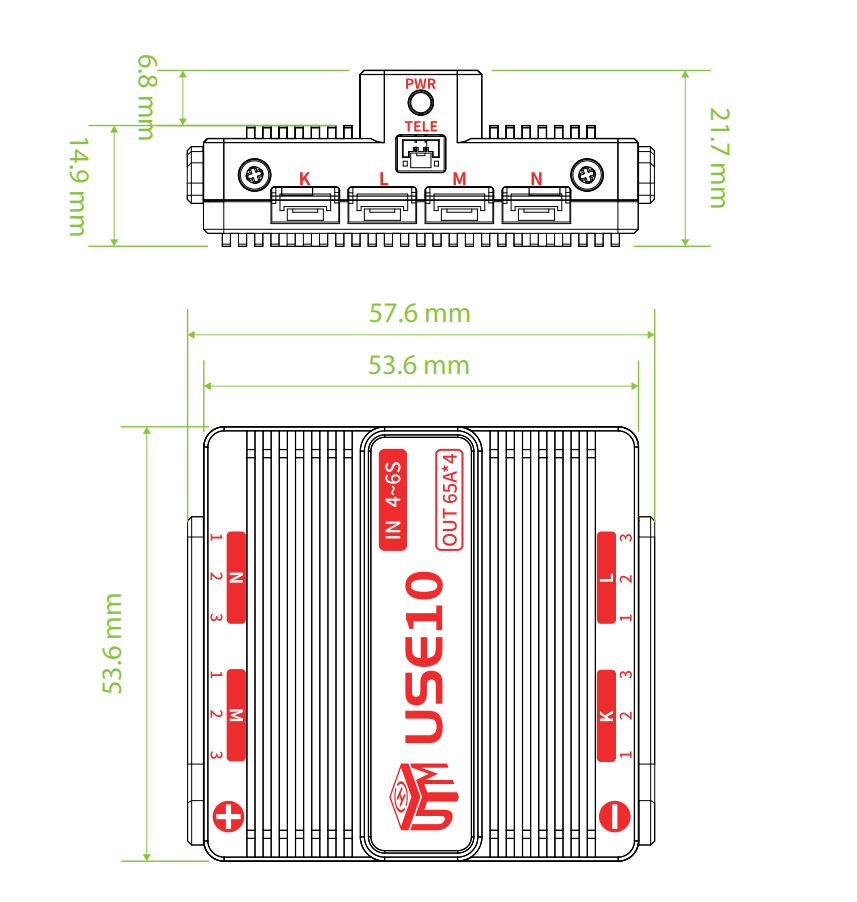

USE10 Dimensions Diagram

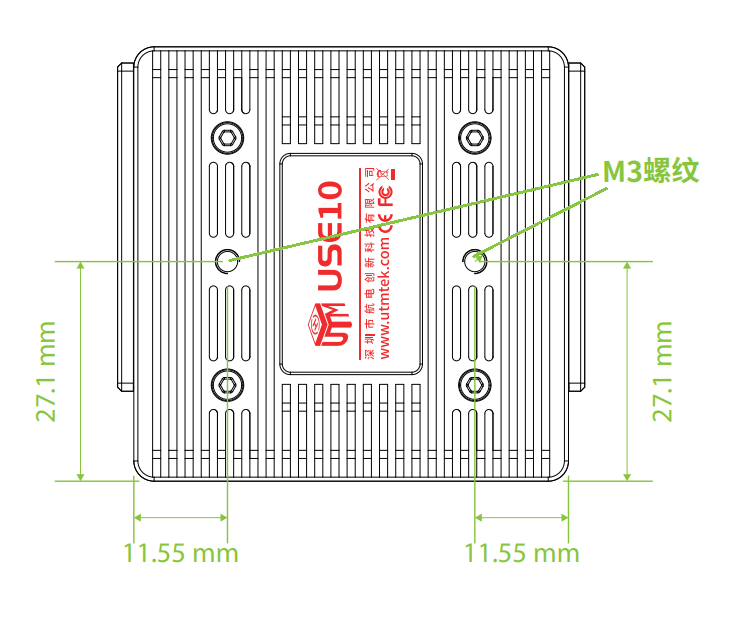

USE10 Installation Diagram
