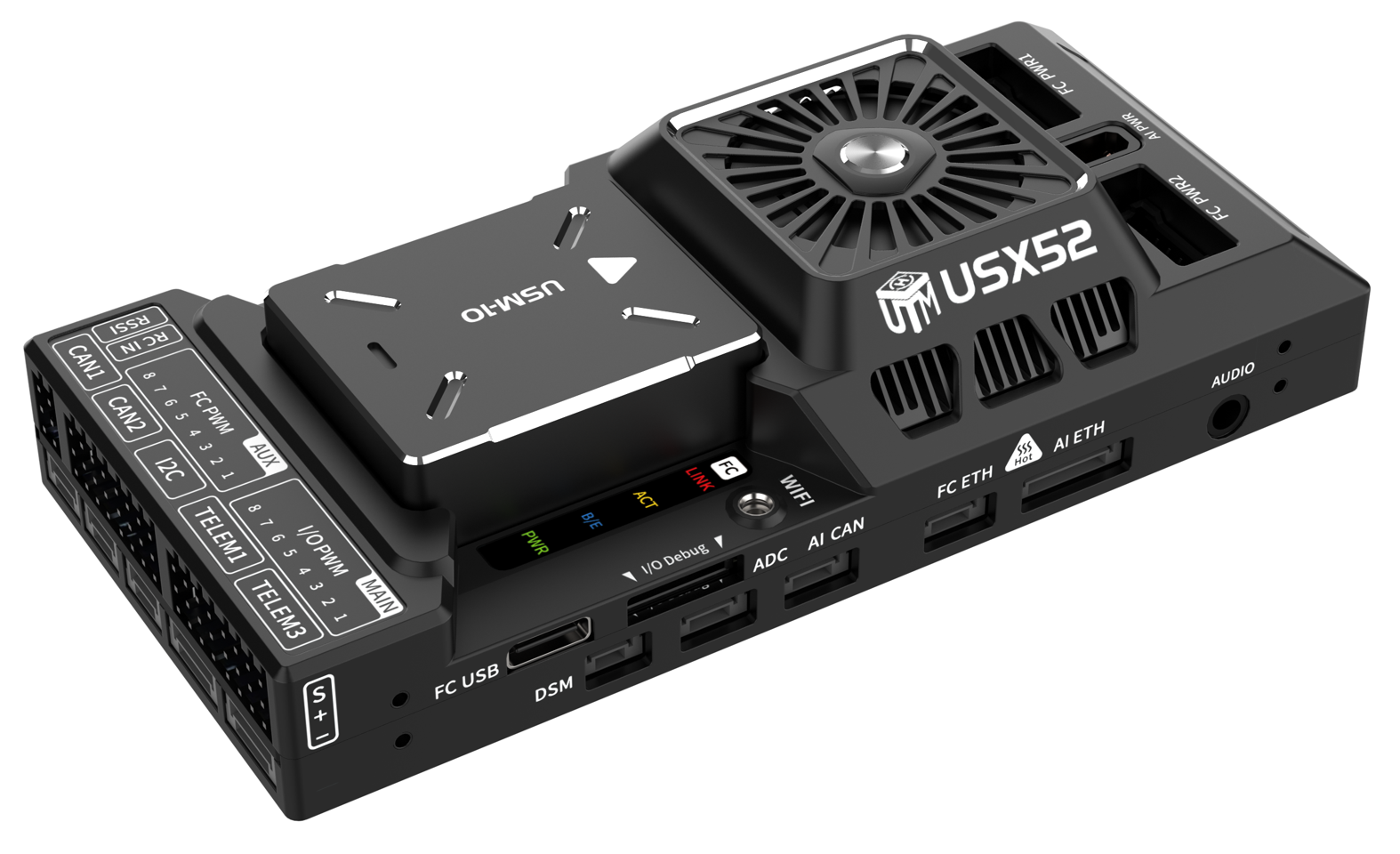

1.1.2 USX52 Compute Flight Controller

Product Description

The USX52 Compute Flight Controller combines the mature Pixhawk 6X flight controller architecture with the D-Robotics X5 AI chip, integrating stable flight control with edge intelligence in an onboard flight control platform. Based on PX4/ArduPilot firmware, it achieves highly reliable flight management. With the X5 chip's BPU AI computing power of 10 TOPS, it can run various neural network algorithms locally in real-time, including image recognition, object detection, semantic segmentation, human detection, object counting, spatial perception, reinforcement learning, and more. The CPU general computing power reaches 21.6 DMIPS/MHz, which can run VIO visual odometry, LIO LiDAR odometry, SLAM mapping and localization, Navigation2 navigation, path planning, and other algorithms without relying on cloud computing, completing the perception, planning, and action loop independently. The module is compatible with RTK, UWB, optical flow, ADS-B and other peripherals, supporting multi-sensor data fusion and intelligent mission planning, balancing flight safety, positioning accuracy, and operational autonomy. Widely applicable to industrial inspection, research and development, autonomous operations, and other drone scenarios with dual demands for flight stability and edge intelligence.

Specifications

Onboard Computer (OBC)

Parameter	Specification
Chip Model	D-Robotics X5 SIP
CPU	8x A55@1.5GHz
BPU	10 TOPS
GPU	32 Gflops
RAM	8GB LPDDR4
Storage	32GB eMMC
OS	Ubuntu 22.04
Input	5V/5A

RDK X5 Module

The RDK X5 Module is equipped with the Sunrise 5 intelligent computing chip, providing up to 10 TOPS of computing power. It is a comprehensive development kit for intelligent computing and robotics applications, with rich interfaces and extreme ease of use, supporting Transformer, RWKV, Occupancy, Stereo Perception, and other complex models and latest algorithms, accelerating the rapid implementation of intelligent applications.

Algorithm Support

• Object Detection: FCOS, YOLO, FasterRCNN, Efficientdet, Mobilenet_ssd
• Image Classification: Mobilenet
• Semantic Segmentation: Unet
• Application Algorithms: Human detection and tracking, gesture recognition, hand keypoint detection, monocular depth estimation network, monocular 3D detection, speech processing

For more software algorithm applications, please refer to D-Robotics Community Official Documentation

CSI Camera Support

No.	Sensor	Resolution
1	IMX219	800W
2	OV5647	500W
3	IMX477	1230W

info

For easy plugging and unplugging, USX52 changed this interface to Mini-HDMI type.

Flight Controller (FMU)

Parameter	Specification
FMU Processor	STM32H753 – Arm® Cortex®-M7 480MHz, 2MB memory, 1MB SRAM
IO Processor	STM32F103 – Arm® Cortex®-M3 72MHz, 64KB SRAM
Accelerometer/Gyroscope	ICM-45686 × 3
Compass	BMM150
Barometer	BMP388 + ICP20100
Input	5V / 5A
Operating Temperature	-20 ~ 70°C
Dimensions	122 × 58 × 28mm
Weight	195g
Power Consumption	8.7W

Interface Definition

Interface Name	Function Description	Interface Type
FC PWR1	Flight controller power input1, with I2C	MOLEX-6P
FC PWR2	Flight controller backup power input2, with I2C	MOLEX-6P
AI PWR	AI power input	XT30
CAN1	Flight controller CAN1 bus	GH1.25-4P
CAN2	Flight controller CAN2 bus	GH1.25-4P
I2C	Flight controller I2C bus	GH1.25-4P
TELEM1	Flight controller serial port	GH1.25-6P
TELEM3	Flight controller serial port	GH1.25-6P
SPI	Flight controller SPI port	GH1.25-11P
UART&I2C	Flight controller serial and I2C port	GH1.25-7P
GPS1	GPS module interface	GH1.25-10P
GPS2	GPS module interface	GH1.25-6P
ADC	Analog to digital signal input	GH1.25-4P
DSM	DSM receiver interface	GH1.25-3P
RSSI	Signal strength output	2.54 DIP-3P
RC IN	S-BUS/PPM signal input	2.54 DIP-3P
FC PWM1~8	Flight controller PWM output	2.54 DIP-3P × 8
I/O PWM1~8	Coprocessor PWM output	2.54 DIP-3P × 8
FC ETH	Flight controller network port	GH1.25-4P
FC USB	Flight controller USB interface	Type-C
AI ETH	AI module network port, default static IP: 192.168.127.10	GH1.25-8P
AI CAN	AI module CAN port	GH1.25-4P
AI UART0/1	AI module serial port	GH1.25-8P
AI USB2.0	AI module USB2.0 port, USB Device mode, for connecting host for ADB, Fastboot, system flashing	Type-C
AI USB3.0	AI module USB3.0 port, USB Host mode, for connecting USB 3.0 peripherals	Type-C
AI TF	AI module TF card interface	MicroSD
AI REC	AI module upgrade button	-
AUDIO	Audio port	4-pole 3.5mm TRRS jack
Wi-Fi	Wi-Fi antenna interface	MMCX
HDMI	AI video output, supports up to 1080P resolution	miniHDMI
CAMERA1	CSI camera1 interface	miniHDMI
CAMERA2	CSI camera2 interface	miniHDMI
FC Debug	Flight controller debug port	SH1.0-10P
IO Debug	Flight controller coprocessor debug port	SH1.0-10P

Status LEDs

LED	Description
FC LINK	Flight controller network port LED
FC ACT	Flight controller working LED
FC B/E	Flight controller BOOT/ERR LED
FC PWR	Flight controller power LED
AI LINK	AI network port LED
AI ACT	AI working LED
AI SYS	AI system LED
AI PWR	AI power LED

Product Drawings

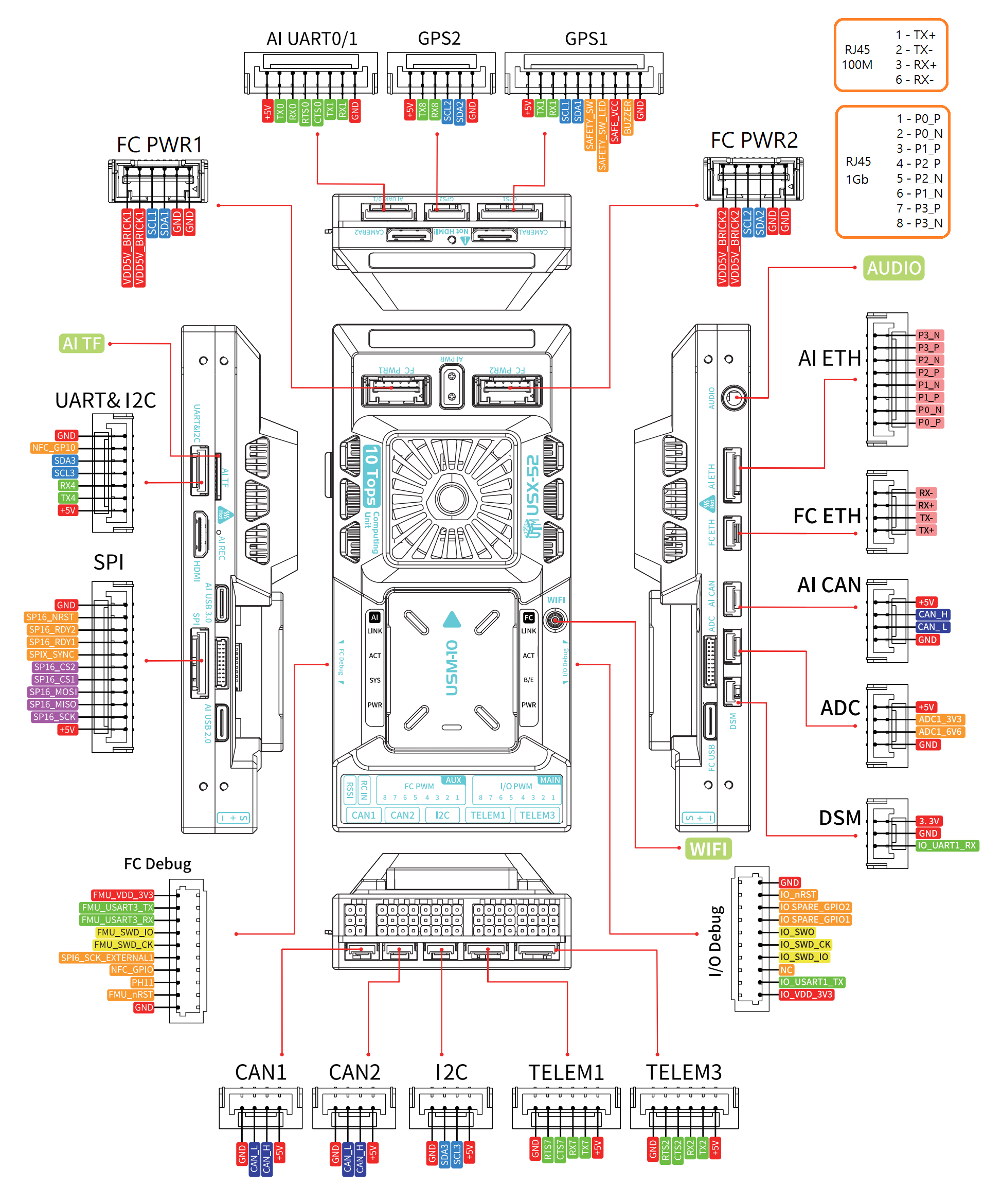

USX52 Interface Diagram

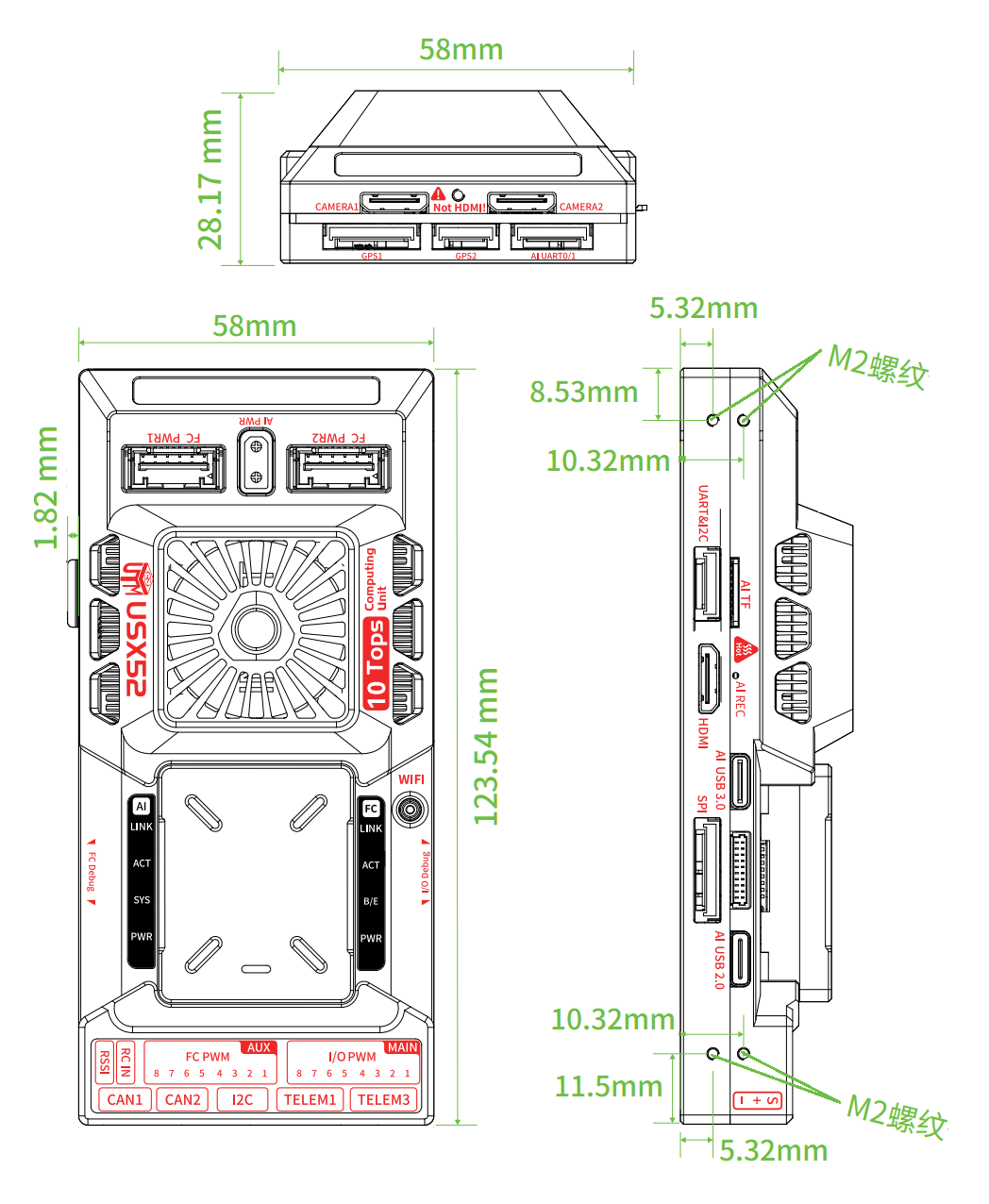

USX52 Dimensions Diagram

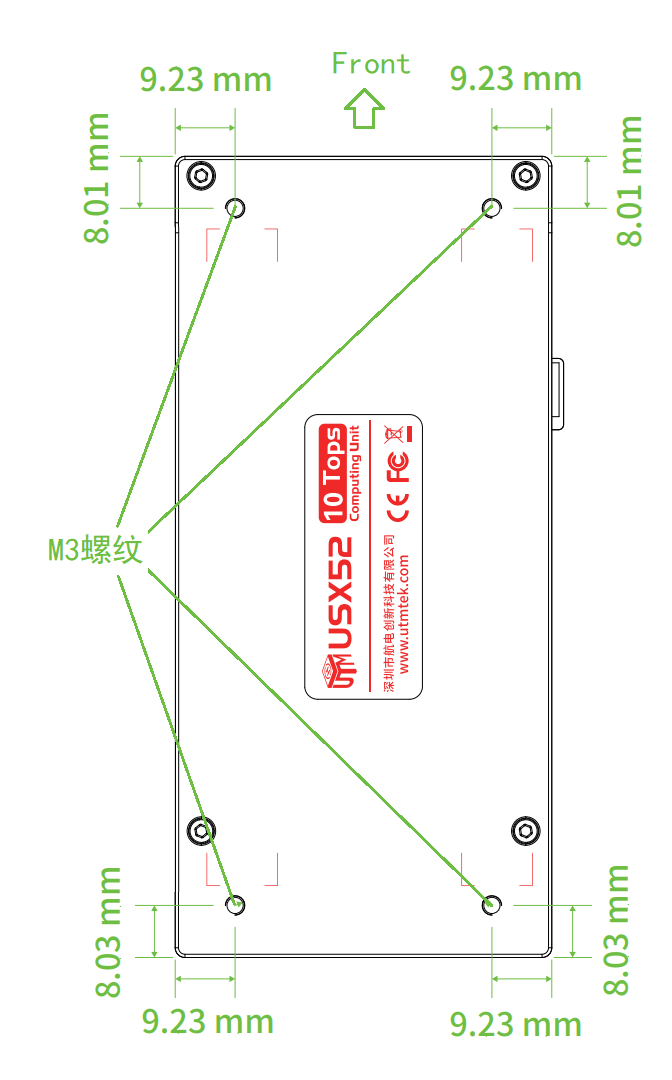

USX52 Installation Diagram

USP11 Power Module

The USP11 Power Module supports 3~12S lithium battery wide voltage input, maximum current rating of 100A, specifically designed to provide stable power for the USX52 Compute Flight Controller. The module has a built-in high-precision voltage and state-of-charge monitoring sensor, which can real-time telemetry of power status. With professional heat dissipation design, it maintains efficient and stable operation under high current load, providing safe and reliable power supply for the flight controller and airborne equipment.

USP11 Specifications

Parameter	Specification
Input Voltage	12~60V
Maximum Current	100A
AI_PWR Output	5V / 5A
FC_PWR Output	5V / 5A
Sensors	Voltage sensor, Current sensor
Power Input Interface	XT90-F
Power Output Interface	XT90-M
Flight Controller Power Interface	MOLEX-6P
AI Power Interface	XT30-M
Status LEDs	2
Weight	75g
Dimensions	63mm × 49mm × 20mm
Operating Temperature	-20 ~ 80°C

Product Drawings

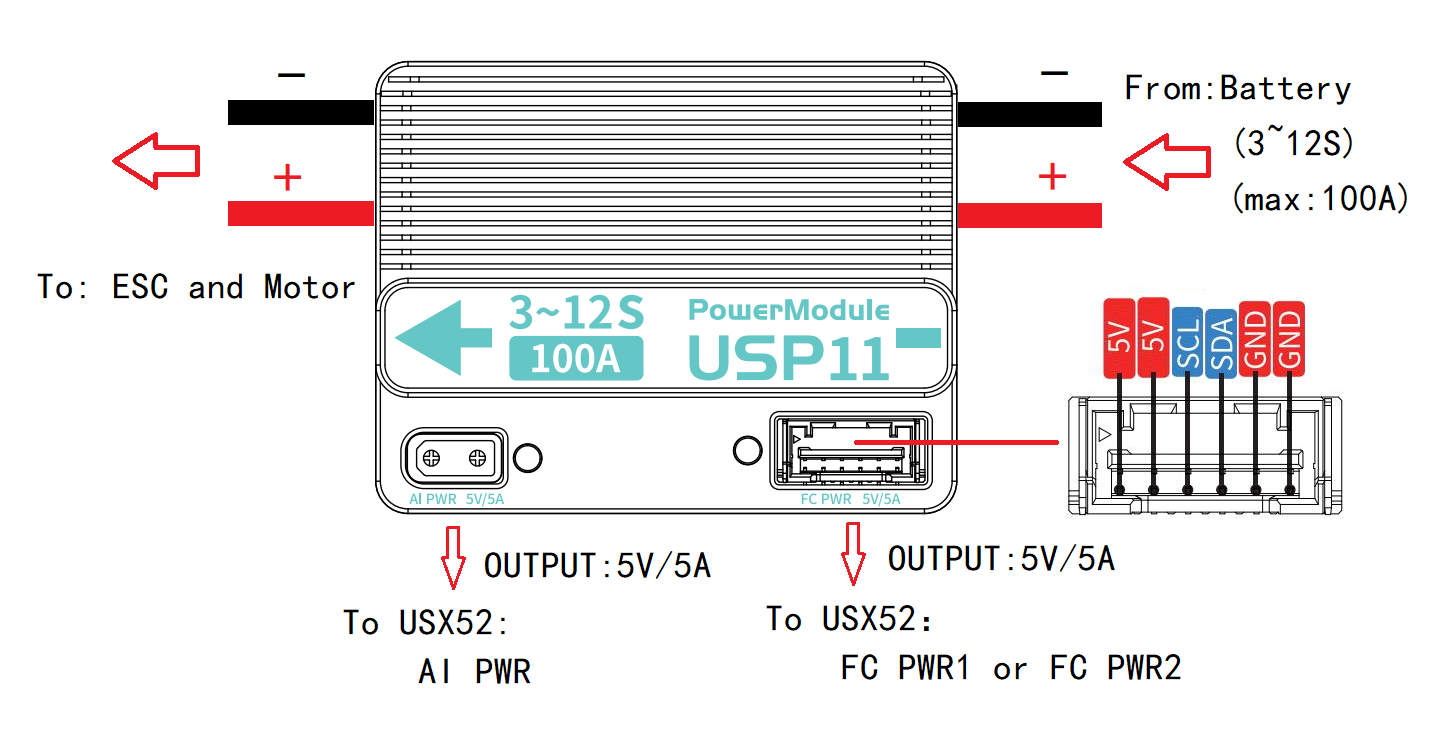

USP11 Interface Diagram

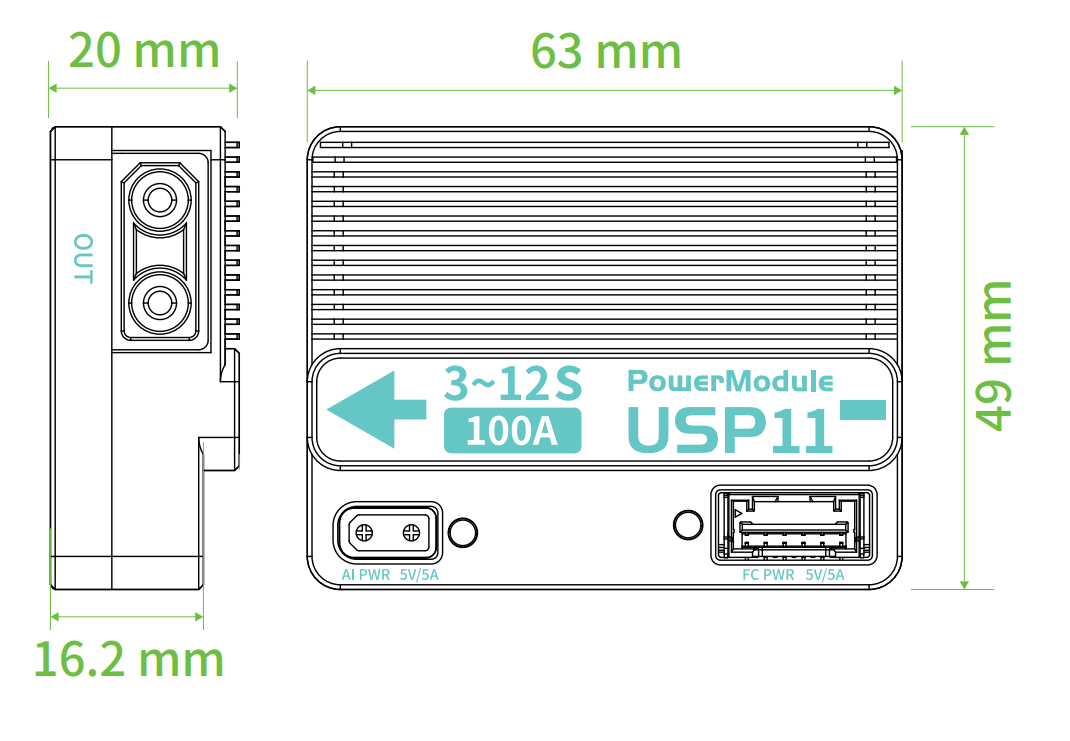

USP11 Dimensions Diagram

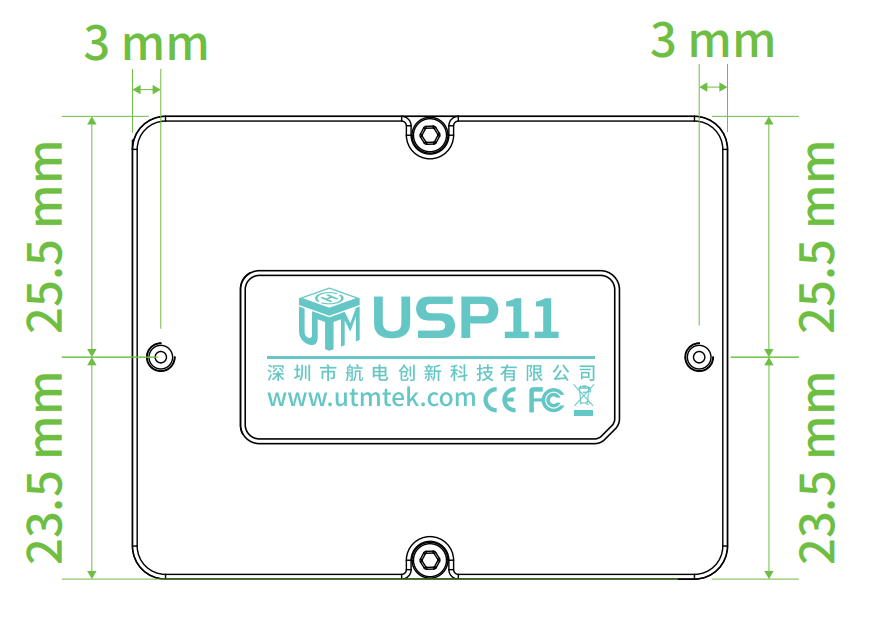

USP11 Installation Diagram
