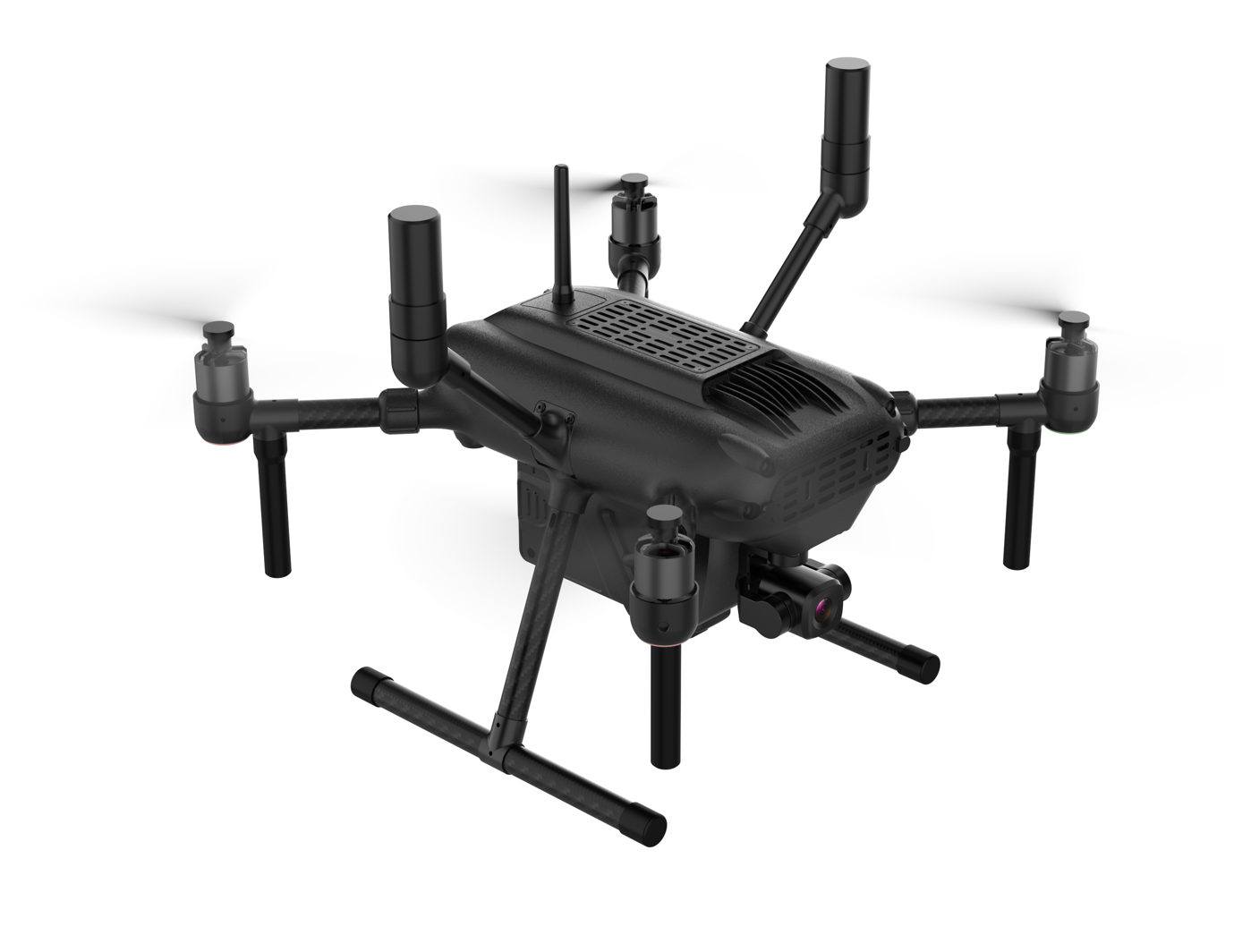

1.4.2 XD450-OD Research Drone - Outdoor Version
Product Description
The XD450-OD is a high-performance modular flight platform customized for complex field research scenarios, high-precision industry operations, and intelligent flight algorithm research and development. The platform core is equipped with USX52 edge compute flight controller (10Tops), with powerful local computing and autonomous control capabilities, providing sufficient computing power support for onboard AI operations and autonomous decision-making. Standard equipped with USR20 high-precision RTK positioning module, it can achieve centimeter-level precise positioning and trajectory replay, meeting strict accuracy requirements for surveying and modeling and fixed-point experiments. Integrated USA10 ADS-B airspace awareness antenna, it real-time monitors surrounding airspace dynamics, greatly improving active safety performance for long-distance outdoor flight.
Features
- Powerful compute, supporting cutting-edge research exploration: USX52 edge compute flight controller as the platform core, integrated high-compute edge compute architecture, can efficiently process massive data such as AI vision and multi-sensor fusion locally.
- Centimeter-level positioning, ensuring operational accuracy: Standard USR20 RTK high-precision positioning module, combined with flight controller system optimization, achieving centimeter-level spatial positioning and precise trajectory replication.
- Multi-layered safety, adapting to complex outdoor environments: Equipped with ADS-B airspace awareness antenna, can real-time receive and parse surrounding airspace aircraft signals, providing early warning of flight conflicts.
- Dual-link communication, achieving long-distance stable transmission: USL10 video link antenna + USL40 4G antenna to build dual-redundant communication system.
- Modular expansion, adapting to diverse research needs: The fuselage integrates top mount, front mount, and other standardized expansion interfaces, supporting rapid installation of various research payloads.
- Stable imaging, helping data collection and analysis: Standard 3-axis stabilized EO gimbal, ensuring high-definition, stable image capture.
Specifications
| Parameter | Specification |
|---|---|
| Wheelbase | 450mm |
| Motors | 2214 × 4 |
| Propellers | 10Inch × 4 |
| Smart Battery | USB10 |
| ESC | USE10 |
| Compute Flight Controller | USX52 |
| RTK | USR20 |
| ADS-B | USA10 |
| Onboard Switch | USS10 |
| Power Module | USP30 |
| Video Link | USL30 |
| 4G Link | USL40 |
| Gimbal | 3-axis EO |
| Endurance | 20min |
| Dimensions | 350mm × 350mm × 327mm |
| Weight | 2.4kg |
| Operating Temperature | -20 ~ 70°C |
Product Drawings

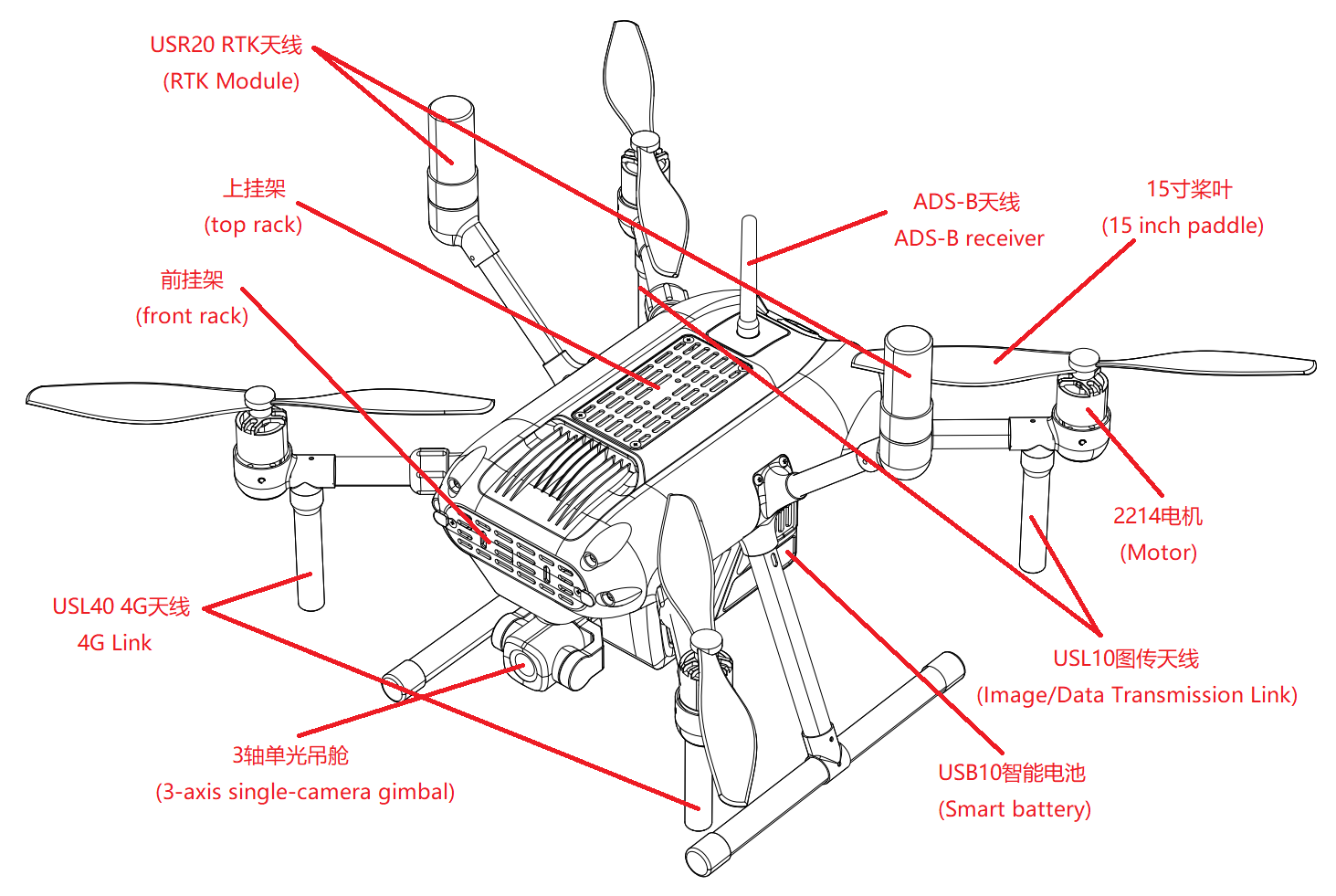

XD450-OD Functional Module Distribution Diagram

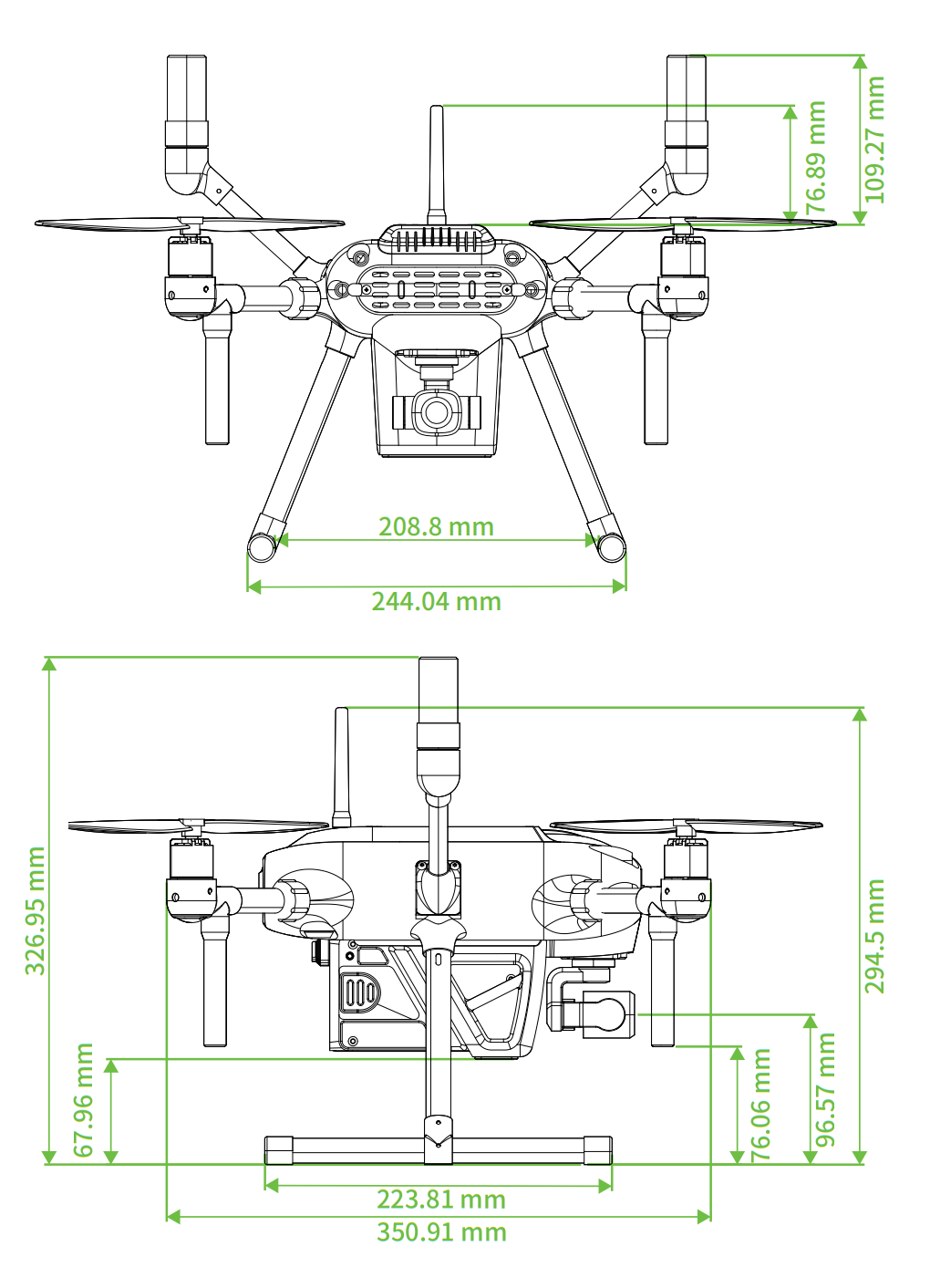

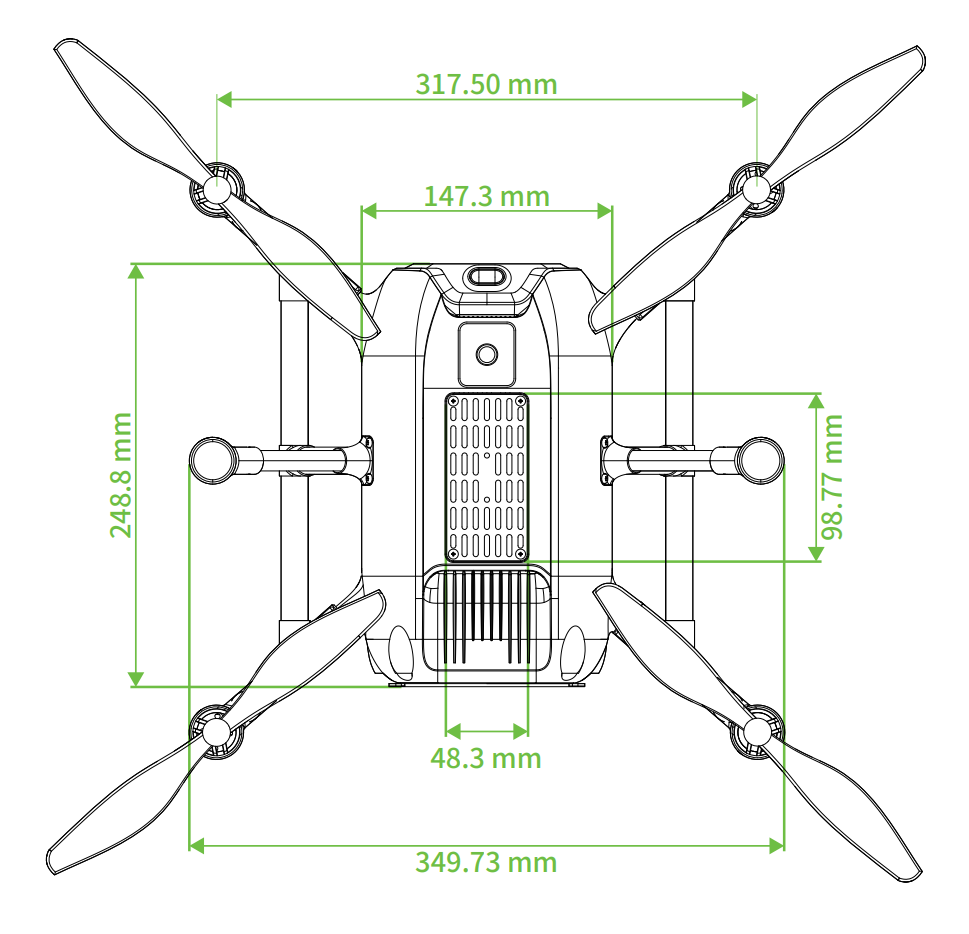

XD450-OD Dimensions Diagram
