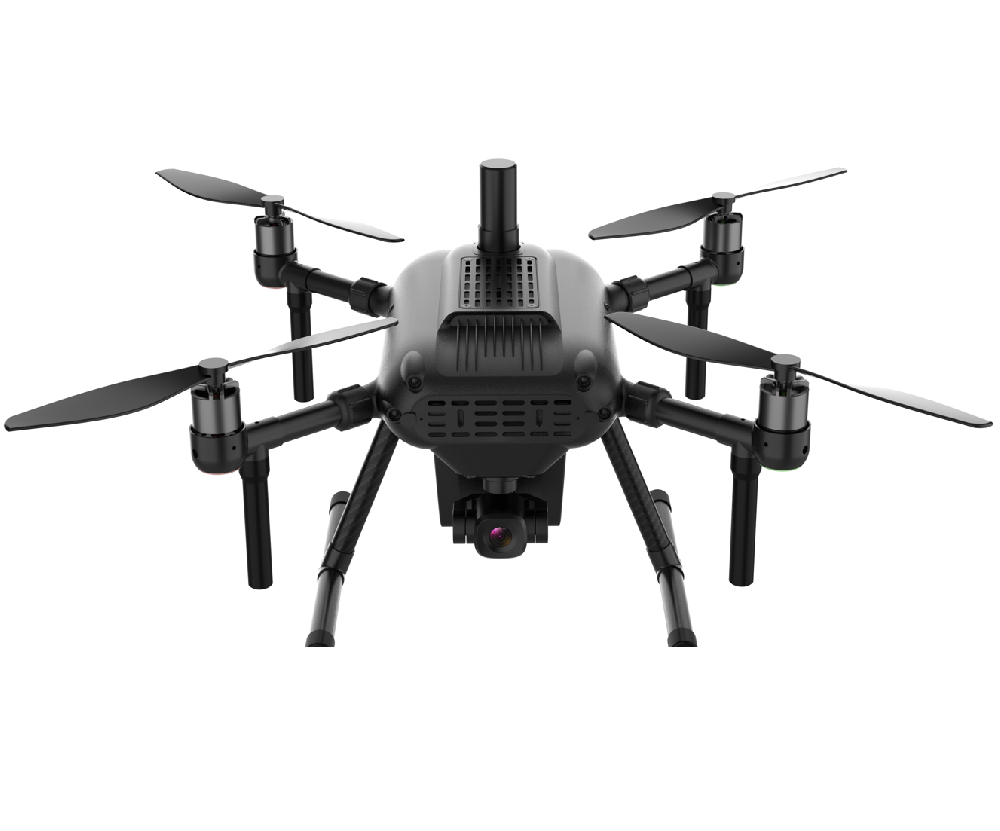

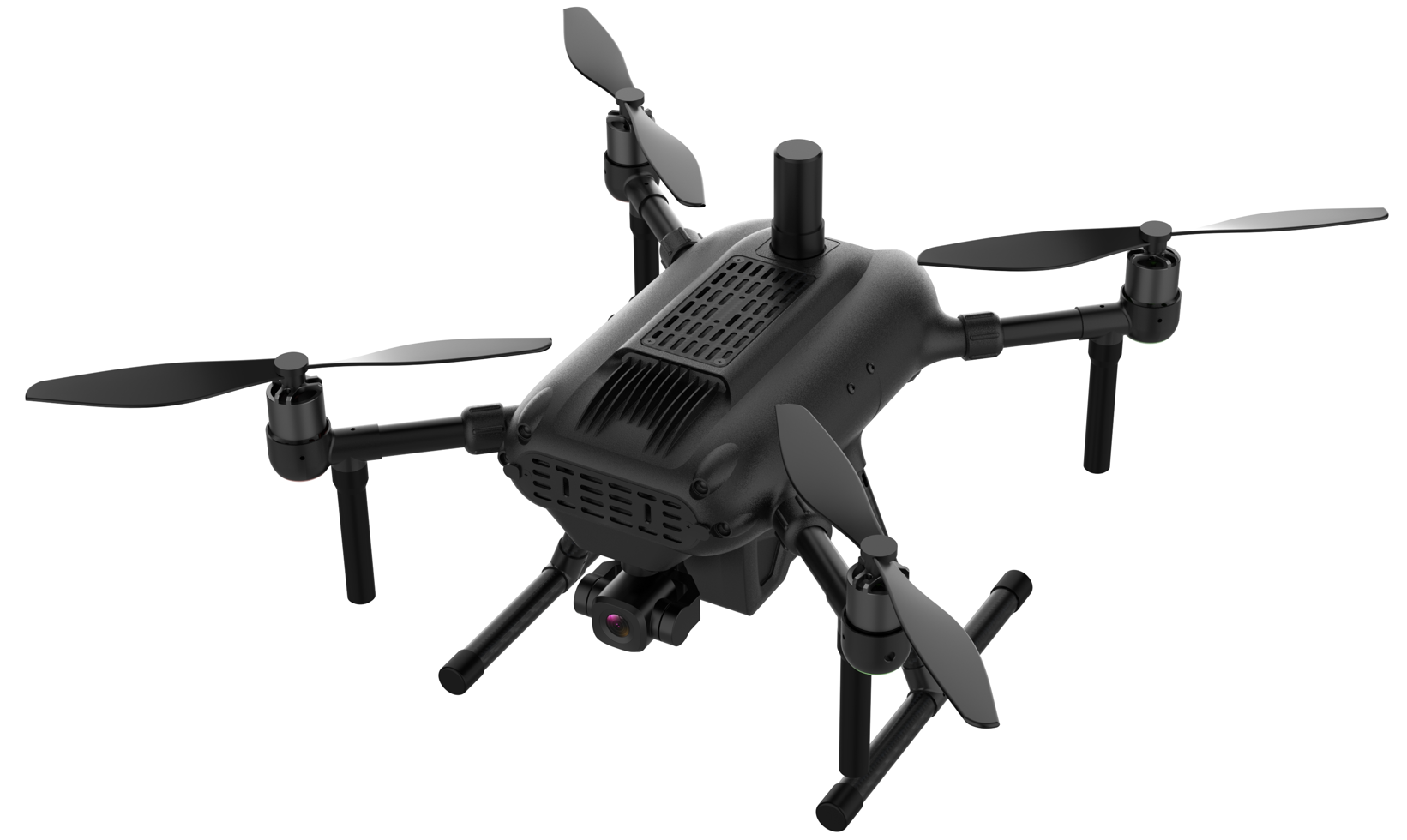

1.4.1 XD450-BS Research Drone - Basic Version
Product Description
The XD450-BS is a high versatility, cost-effective standardized intelligent flight platform specifically designed for university teaching and training, entry-level research and development, and basic algorithm verification. The platform uses the USX52 edge compute flight controller (10Tops) as the core of system-wide control and computing, providing sufficient basic computing power for onboard program execution and primary intelligent algorithm deployment. Equipped with GPS helical antenna, it can achieve stable satellite positioning, precise hovering, and reliable autonomous flight in open outdoor environments. Standard equipped with USV20 stereo vision camera, it natively has stereo environmental perception capability, enabling direct development of visual ranging, environment modeling, object detection, and other vision-oriented basic research and teaching experiments.
Features
- Dedicated edge compute, easy entry to development: Equipped with USX52 edge compute flight controller, abundant computing power and open architecture, allowing deployment of various basic flight and visual algorithms without complex modifications.
- Precise satellite positioning, stable and reliable outdoor flight: Integrated high-performance GPS helical antenna, high positioning accuracy and strong anti-drift ability in open scenarios.
- Stable imaging, helping data collection and analysis: Standard 3-axis stabilized EO gimbal, using high-precision stabilization algorithm, effectively counteracting flight vibration.
- Rugged and durable, safe and easy to maintain: Integrated reinforced landing gear with bright navigation lights, greatly improving takeoff and landing fault tolerance and environmental adaptability.
- Flexible expansion, smooth performance upgrade: Reserved top universal expansion frame, supporting subsequent installation of sensors, functional gimbals, and other accessories as needed.
- High cost performance, suitable for batch deployment: Streamlined and practical functional configuration with affordable positioning, can be batch deployed in laboratories and teaching classes.
Specifications
| Parameter | Specification |
|---|---|
| Wheelbase | 450mm |
| Motors | 2214 × 4 |
| Propellers | 10Inch × 4 |
| Smart Battery | USB10 |
| ESC | USE10 |
| Compute Flight Controller | USX52 |
| GPS | Helical antenna |
| Onboard Switch | USS10 |
| Power Module | USP30 |
| Video Link | USL30 |
| Gimbal | 3-axis EO |
| Endurance | 20min |
| Dimensions | 350mm × 350mm × 274mm |
| Weight | 2.2kg |
| Operating Temperature | -20 ~ 70°C |
Product Drawings

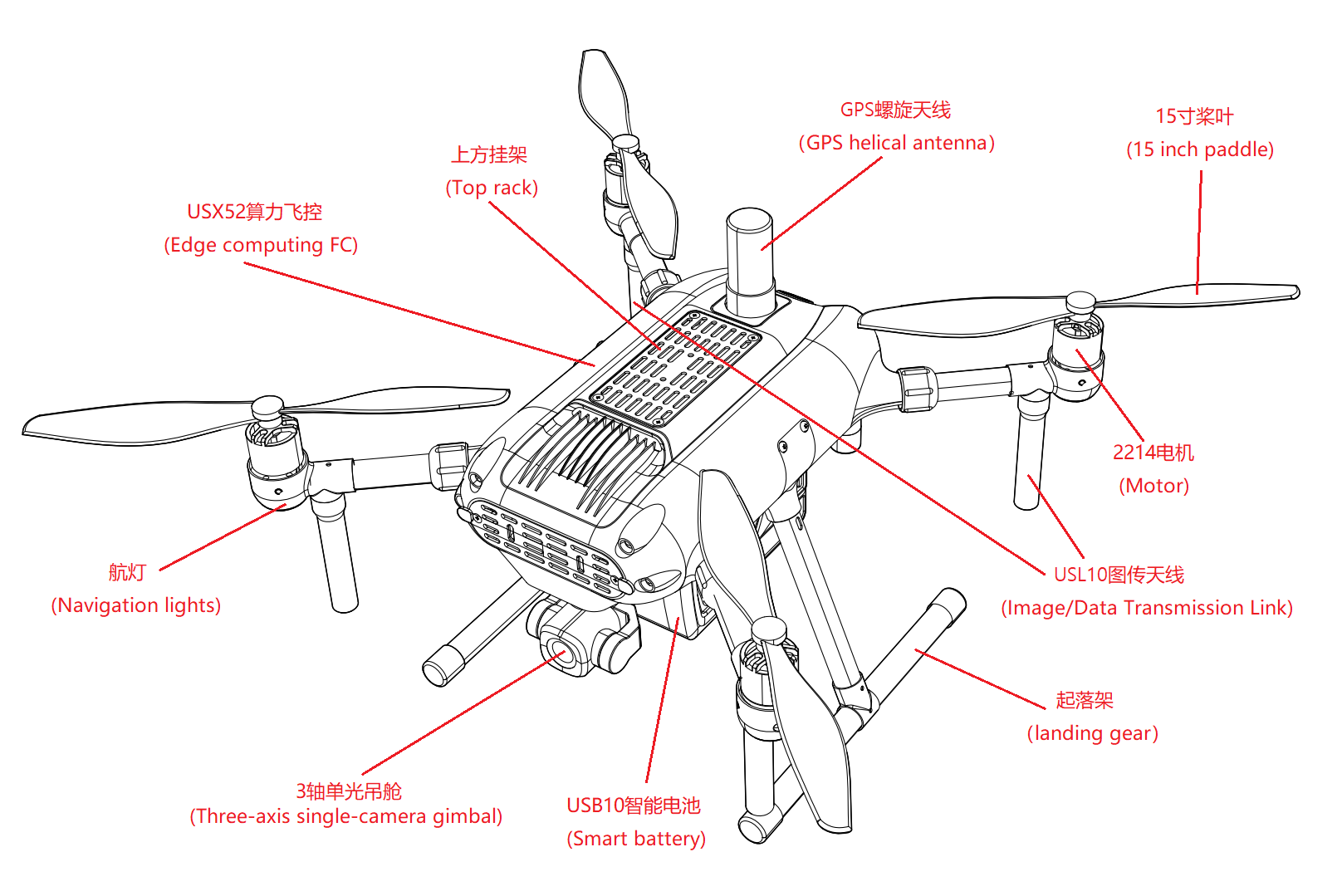

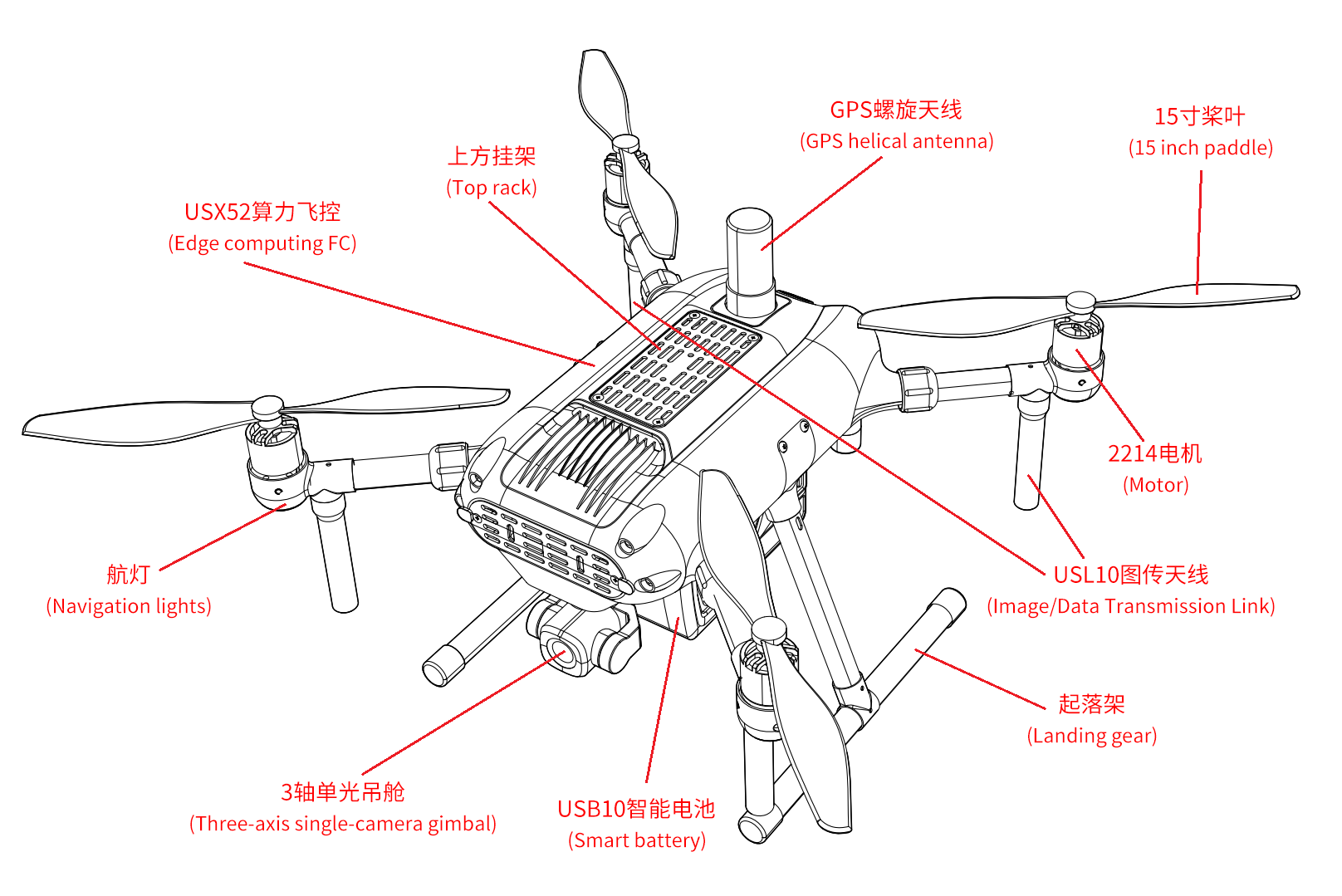

XD450-BS Functional Module Distribution Diagram

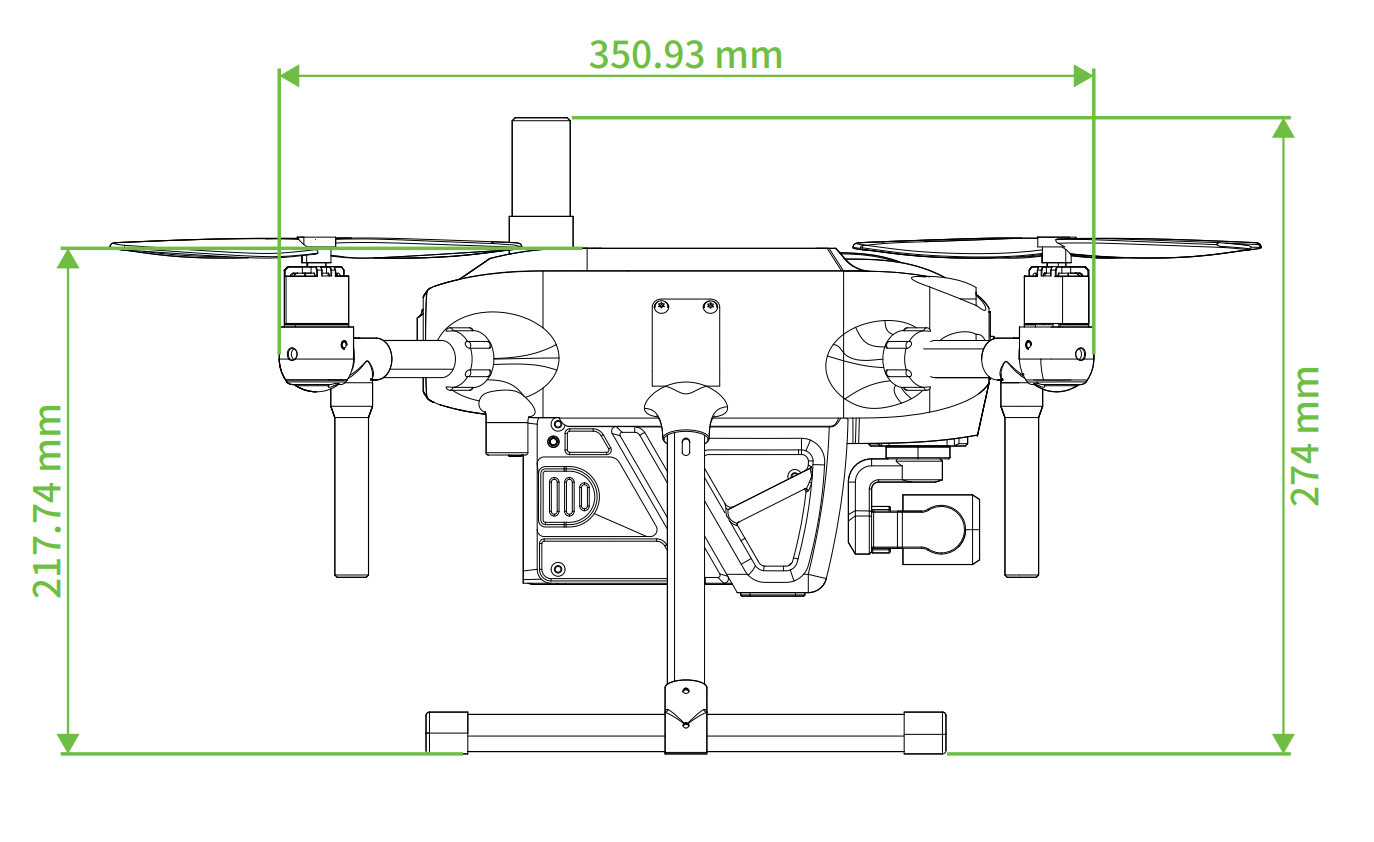

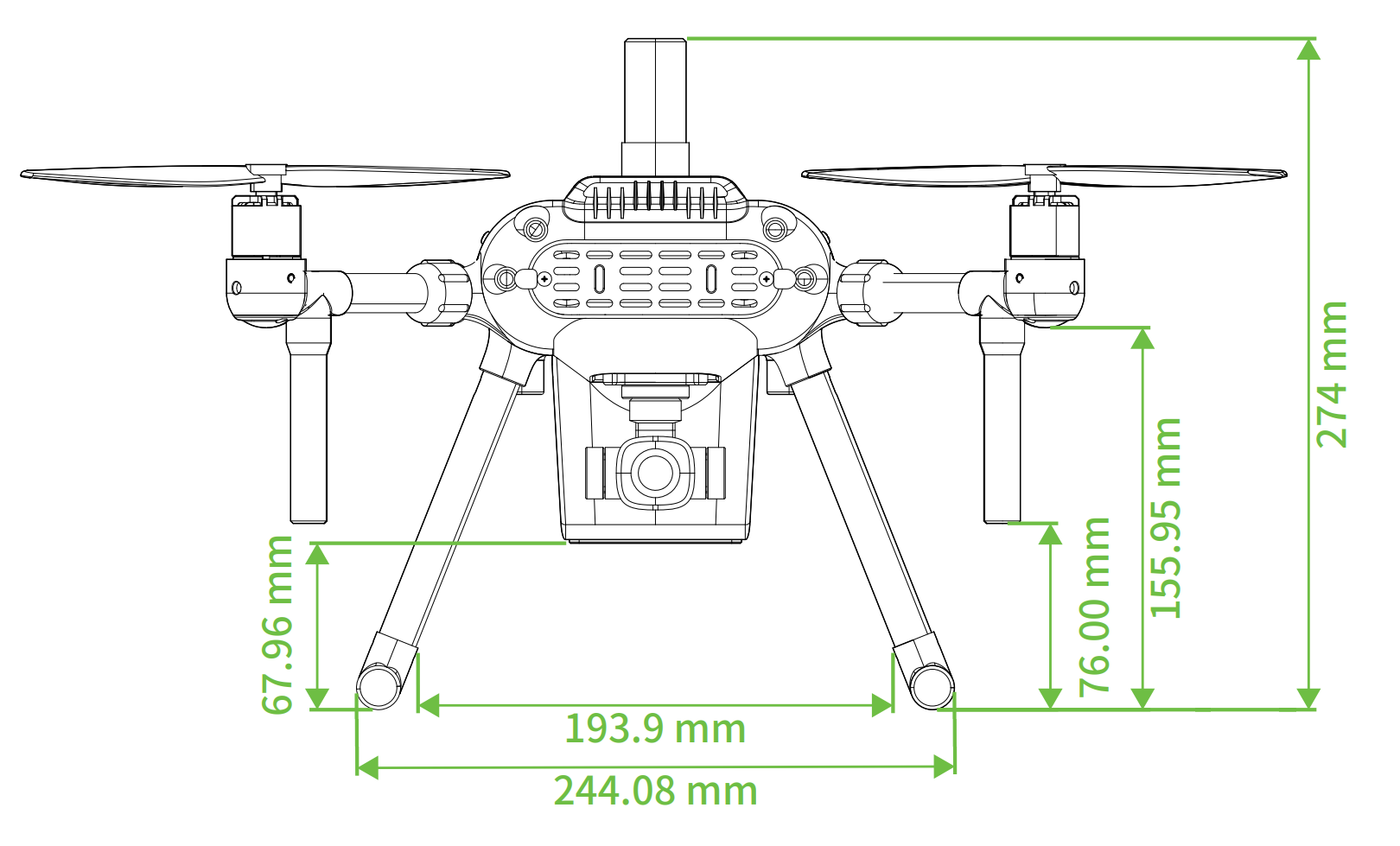

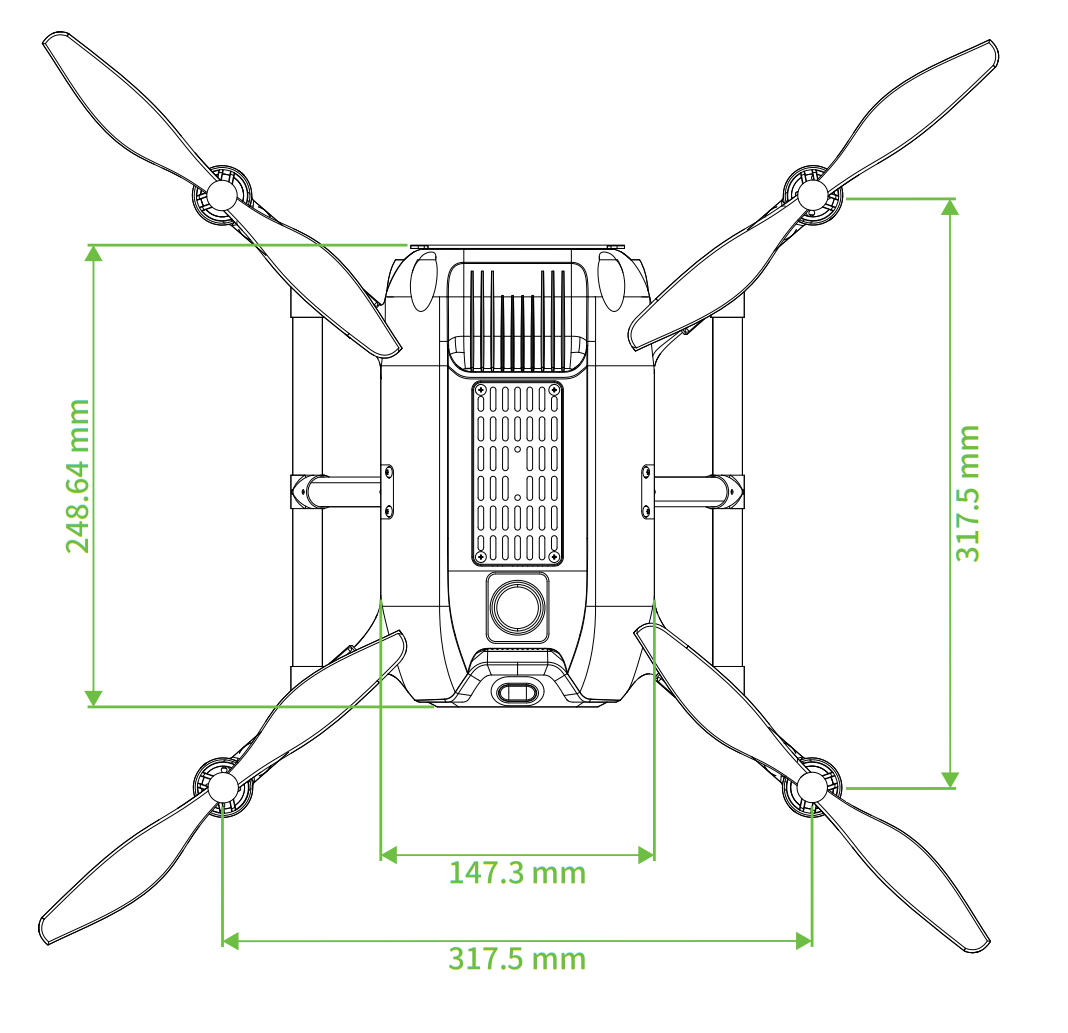

XD450-BS Dimensions Diagram
