1.5.2 ZK30 Triple Console UAV Ground Control Station
Product Description
The ZK30 Three-Unit UAV Central Control Console is an integrated command hub designed for multi-UAV collaborative and remote operation scenarios. It adopts a triple-screen parallel display architecture, simultaneously presenting flight status, high-definition image transmission, and mission data, enabling comprehensive control of multi-dimensional information on a single screen. It integrates core capabilities such as end-to-end communication management, multi-UAV formation scheduling, flight path planning, and real-time flight control command issuance. It supports coordinated transmission of data, image, and remote control signals, enabling centralized monitoring, relay control, and collaborative mission management of multiple UAVs. It also features data recording, status alarms, and link redundancy protection, meeting the efficient command needs of scenarios such as inspection, security, and emergency rescue. It is a core ground terminal for large-scale UAV operations and swarm management.
Seat Configuration
| Seat Type | Configuration |
|---|---|
| Main Station | Map display, video display, touchscreen |
| Command Station | Control joystick, throttle lever, fingerprint authorization |
| Wingman Station | Walkie-talkie, headset |
Display Functions
| Display | Function |
|---|---|
| Map Display | Satellite map, flight trajectory display, route planning, UAV parameter display |
| Video Display | UAV video display, flight parameter overlay HUD, AI recognition |
Control Capabilities
| Parameter | Specification |
|---|---|
| Accessible Models | DJI Airport, Autel Dock, Aviation Dock, open-source UAVs, etc. |
| Access Quantity | 10 UAVs |
| Control Joystick | High-precision Hall type, controlling UAV, controlling gimbal |
| Seat Buttons | Sub-function buttons, toggle switches, throw switch with safety cover |
| Communication Method | Network communication |
| Deployment Method | Internet, LAN |
| Video Latency | Within 1 second |
| Video Switching | Each UAV supports 3-way video switching |
| Mode Switching | UAV control mode / gimbal control mode |
| Single Machine Mode | Main station controls UAV / wingman station controls gimbal |
| Multi-machine Mode | Main station controls UAV A / wingman station controls UAV B |

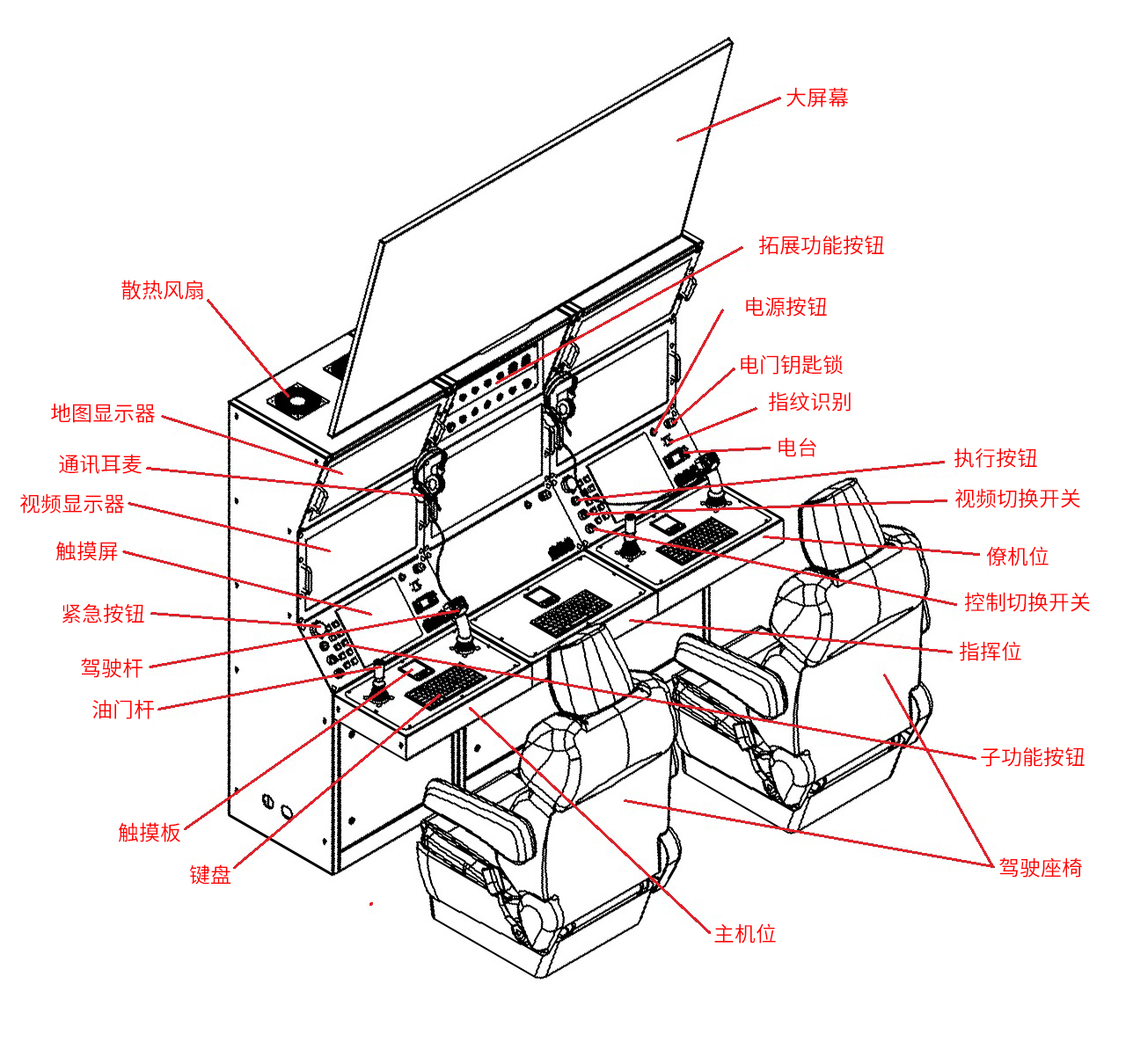

Functional Module Distribution Diagram

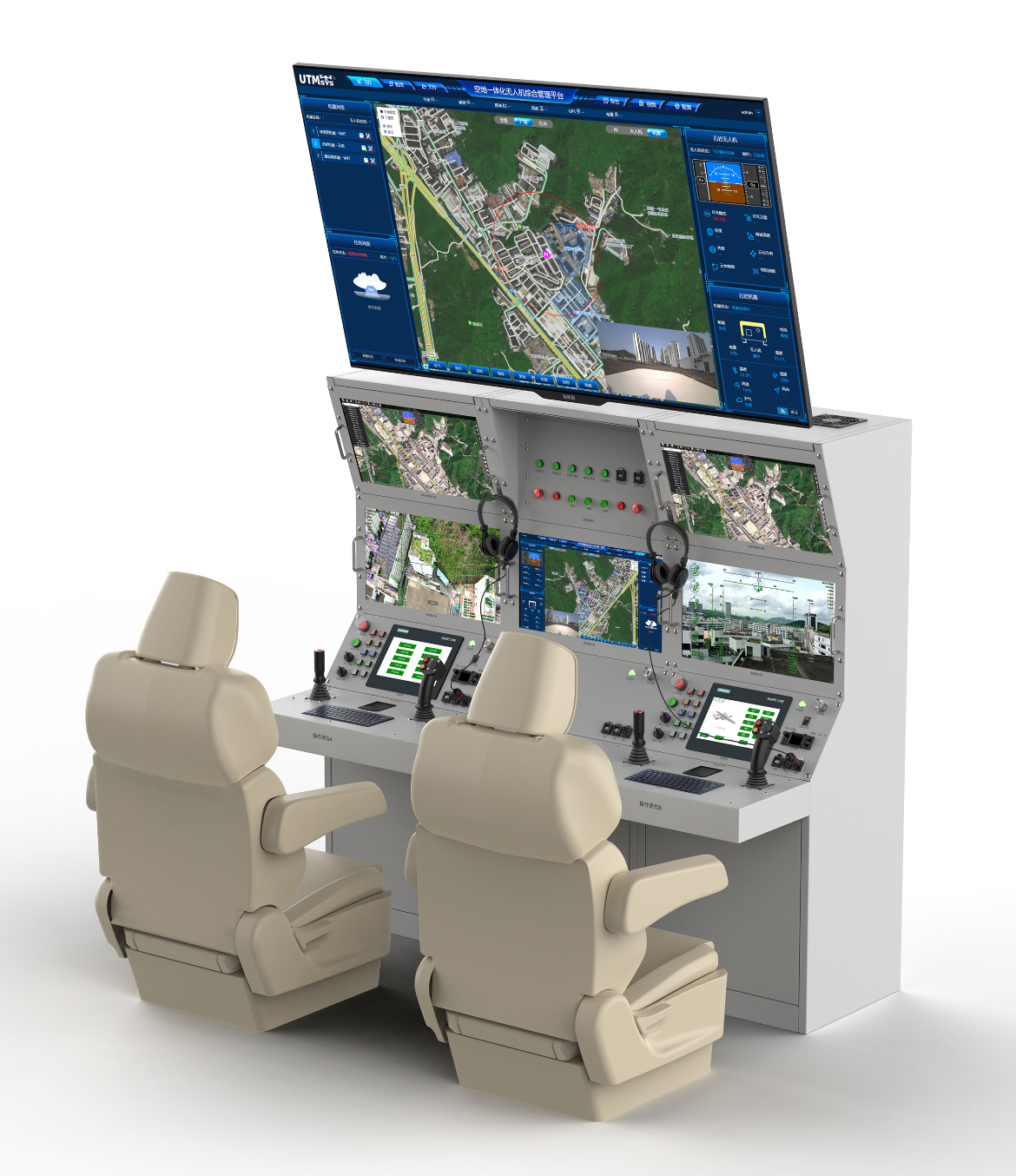

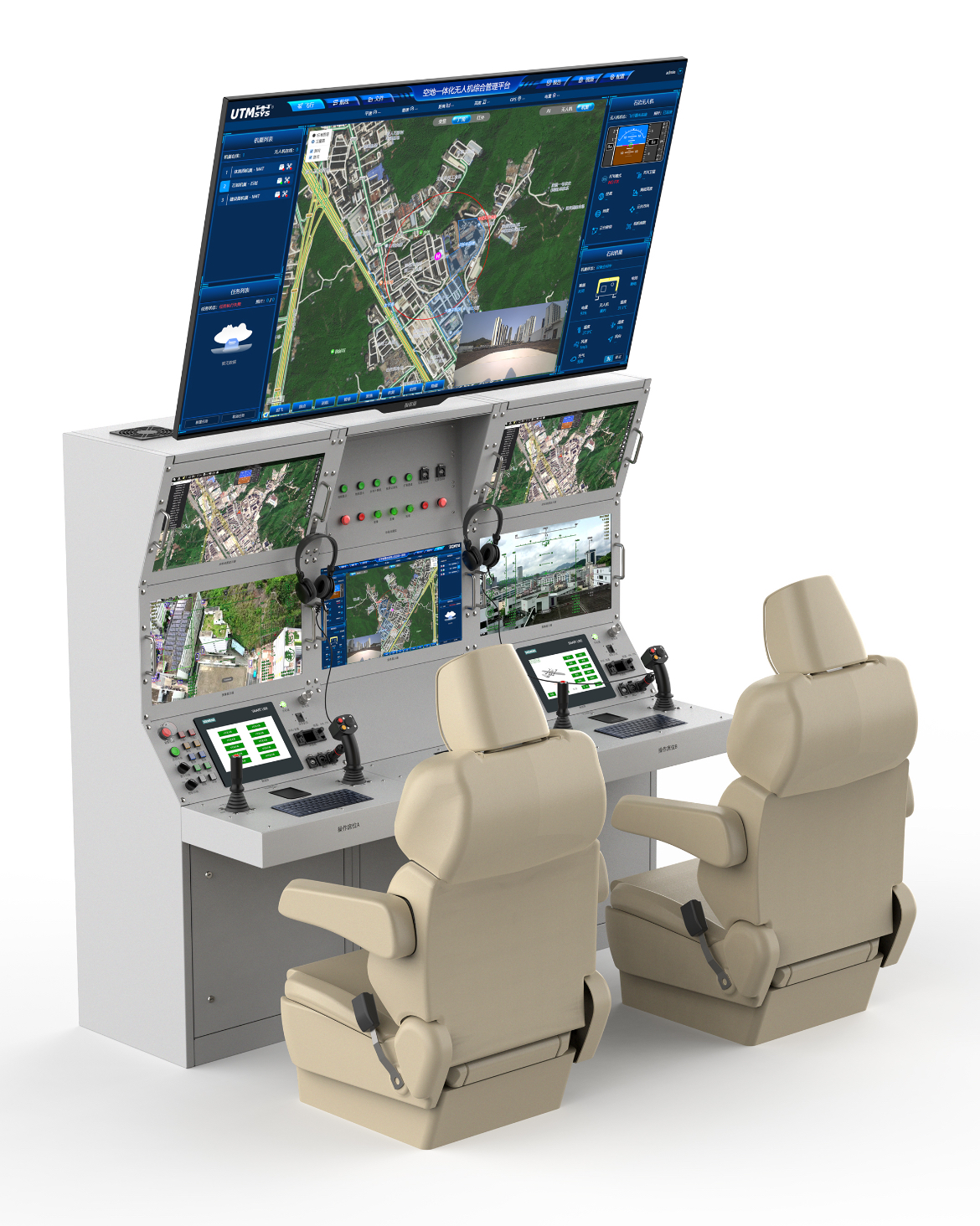

Product Appearance

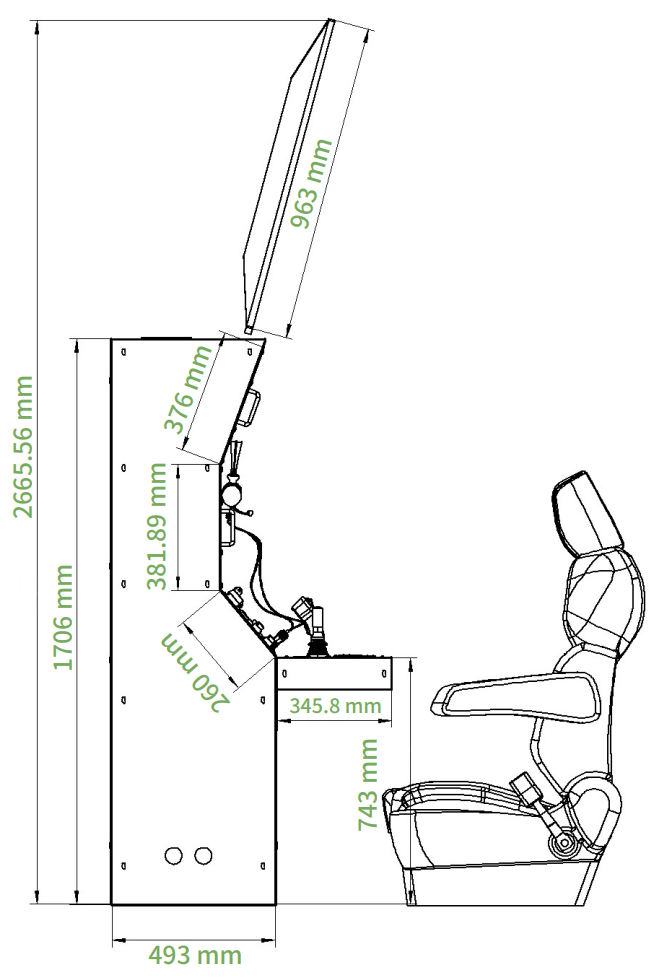

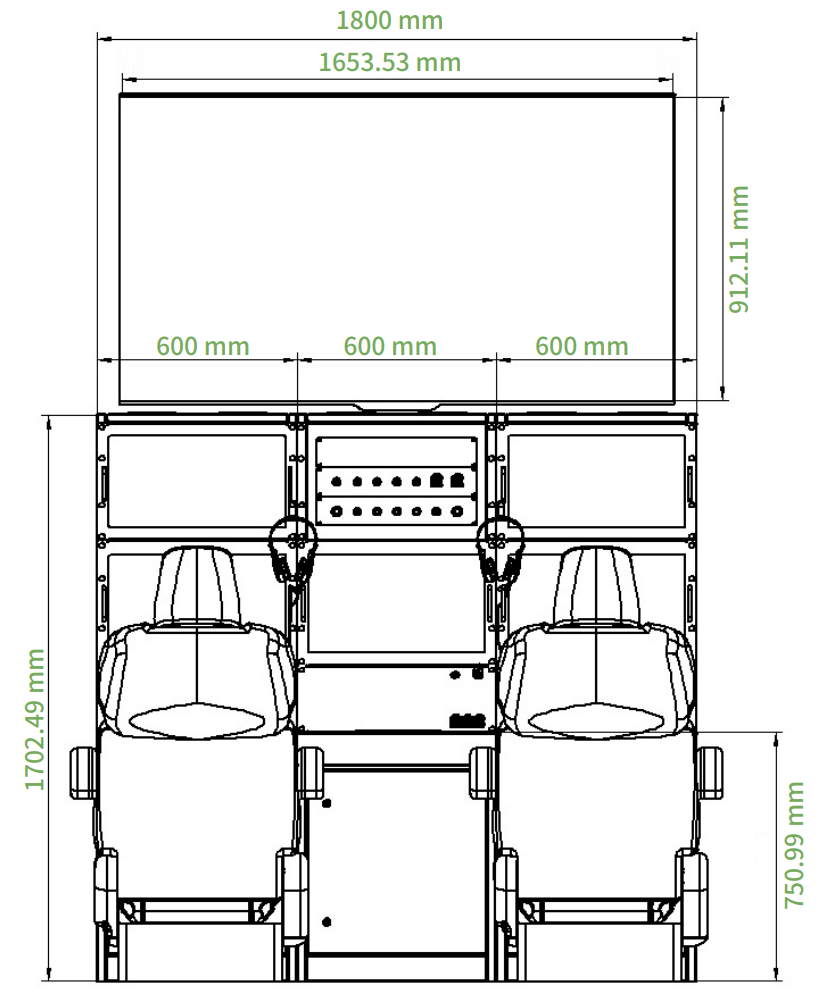

Dimensional Drawing
