1.2.1 USL40 4G Communication Link

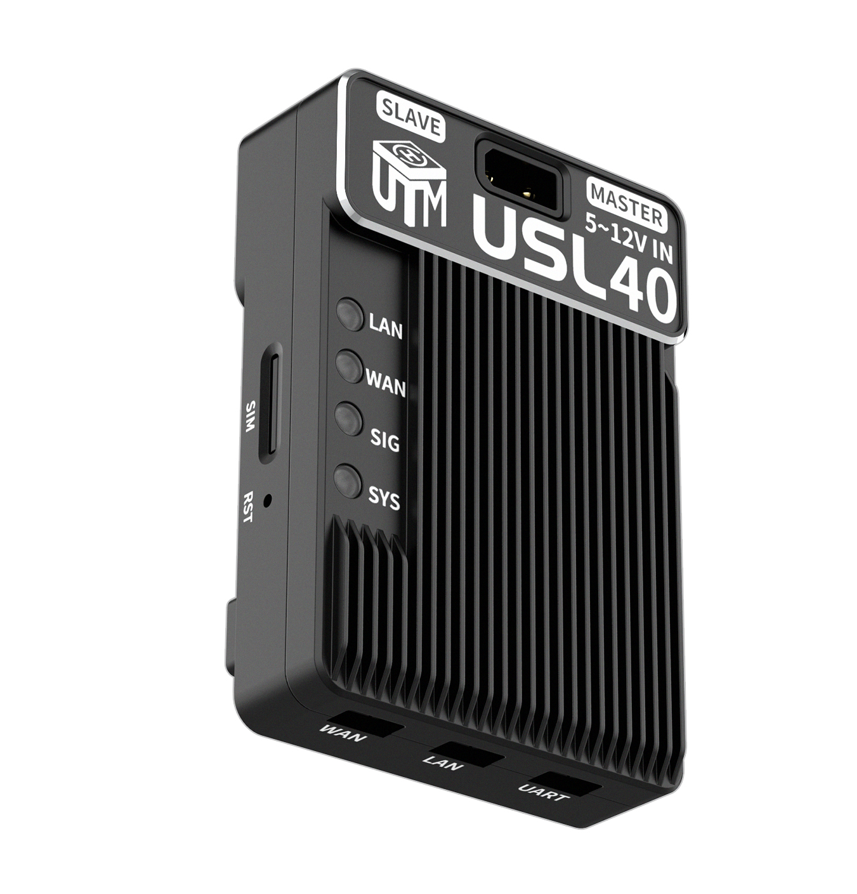

USL40

Product Description​

The UAV 4G communication link is a dedicated communication module based on 4G LTE network. Its core functions are to provide beyond-line-of-sight control, HD video transmission and data return, and communication link redundancy. It can also combine with network RTK to achieve high-precision positioning, making it a key component for industry UAVs to break through visual distance limitations and ensure safe operations in complex environments.

Specifications​

ParameterSpecification
Operating Voltage12V
Peak Current1A
Transmission Rate300Kbps
Supported StandardsFDD-LTE
TCP/IP SupportTCP
Voice Call SupportNo
SMS SupportNo
Phone Book SupportNo
Dimensions59mm × 41mm × 16mm
Weight47g
Power Consumption1.5W
Operating Temperature-20 ~ 80°C

Interface Definition​

Interface NameFunction DescriptionInterface Type
Voltage InputPower inputXT30
WANWide area network interfaceMX1.25-4P
LANLocal area network interfaceMX1.25-4P
UARTSerial communicationMX1.25-4P
SIM Card SlotNano SIM cardNano SIM
Antenna Connector4G antenna interfaceMMCX × 2

Status LEDs​

LEDDescription
LANLocal area network status
WANWide area network status
SIGSignal strength
SYSSystem running status

Product Drawings​

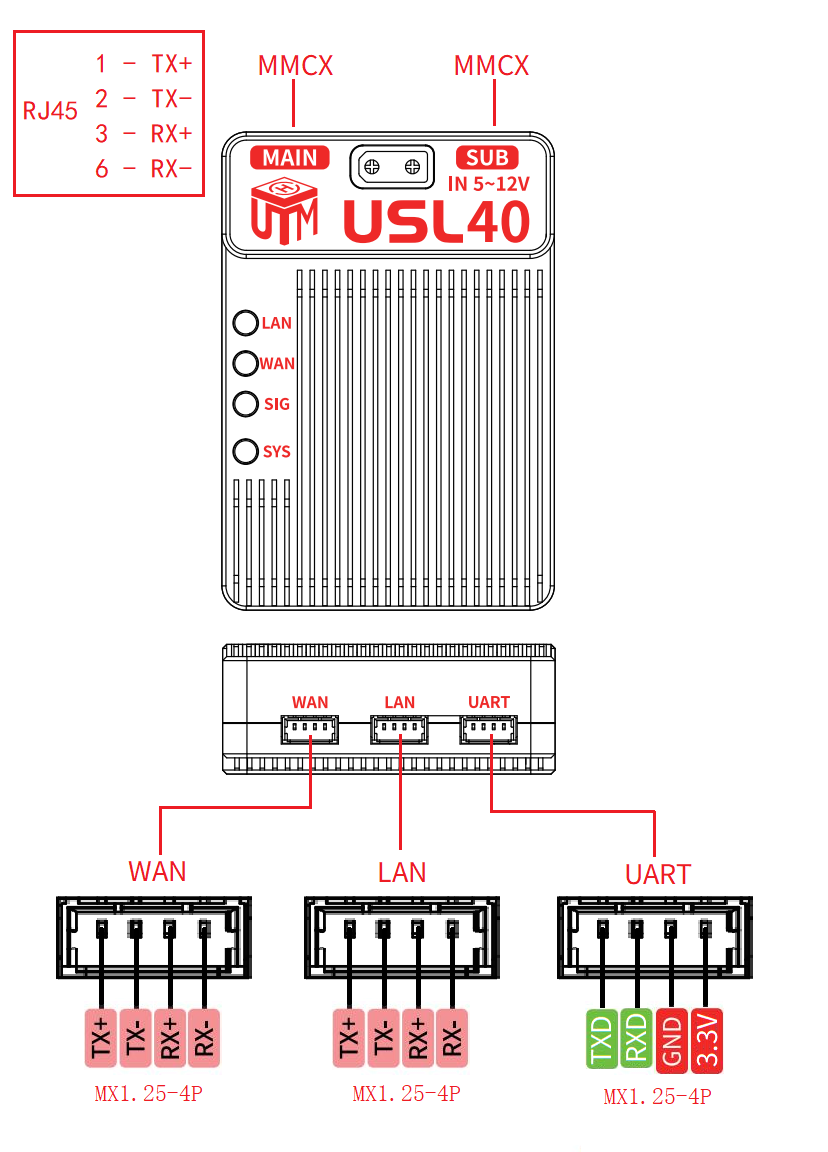

Interface Diagram​

USL40 Interface

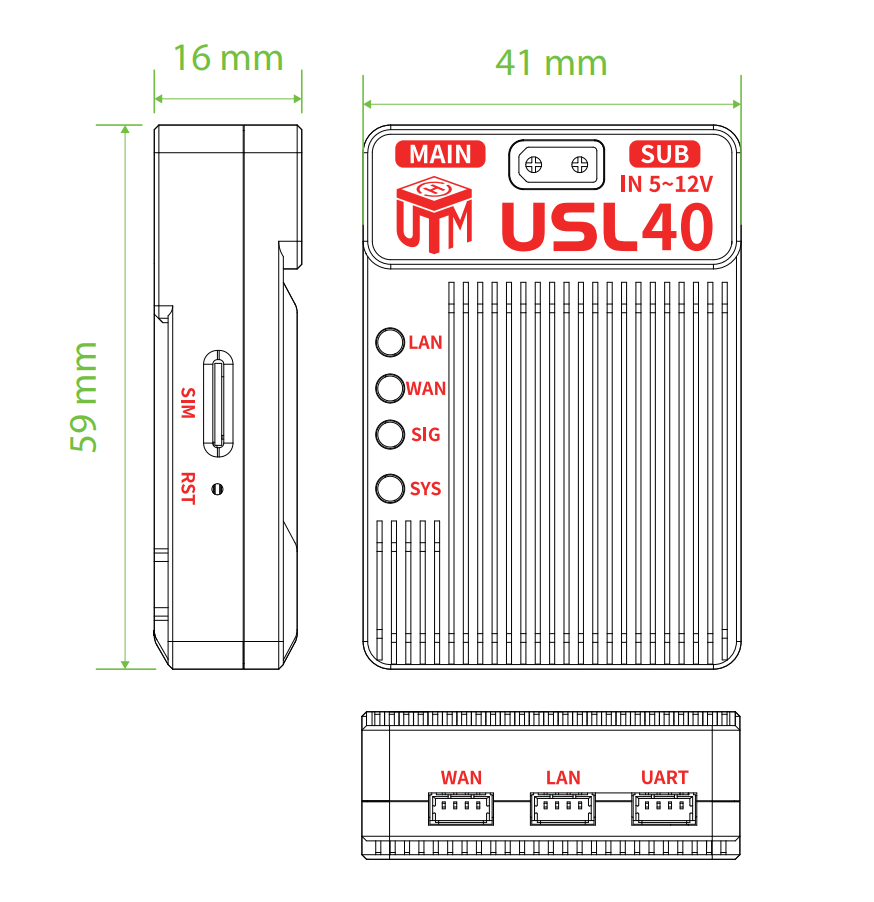

Dimensions Diagram​

USL40 Dimensions

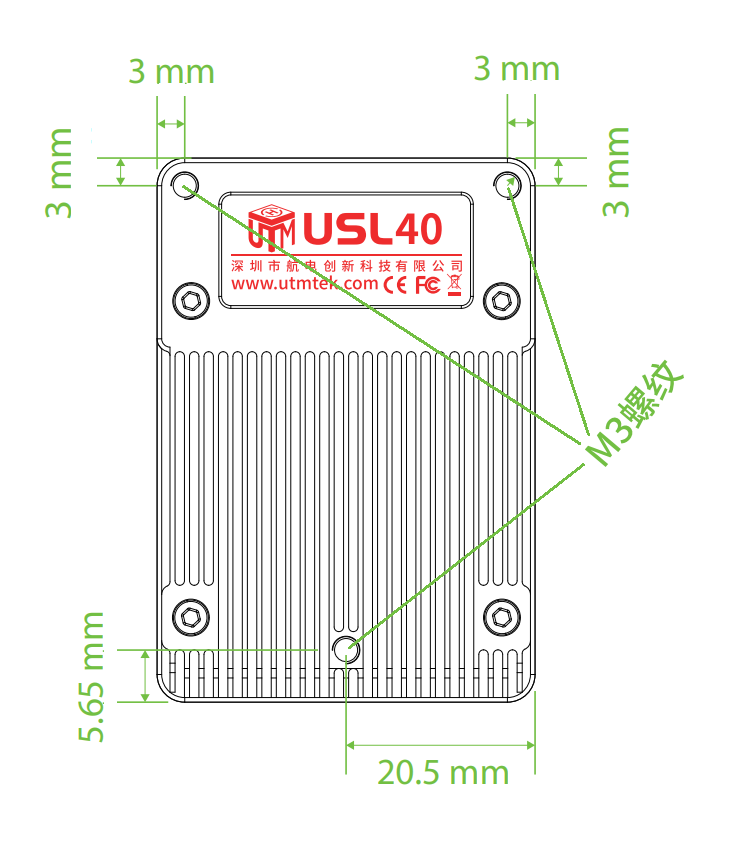

Installation Diagram​

USL40 Installation
